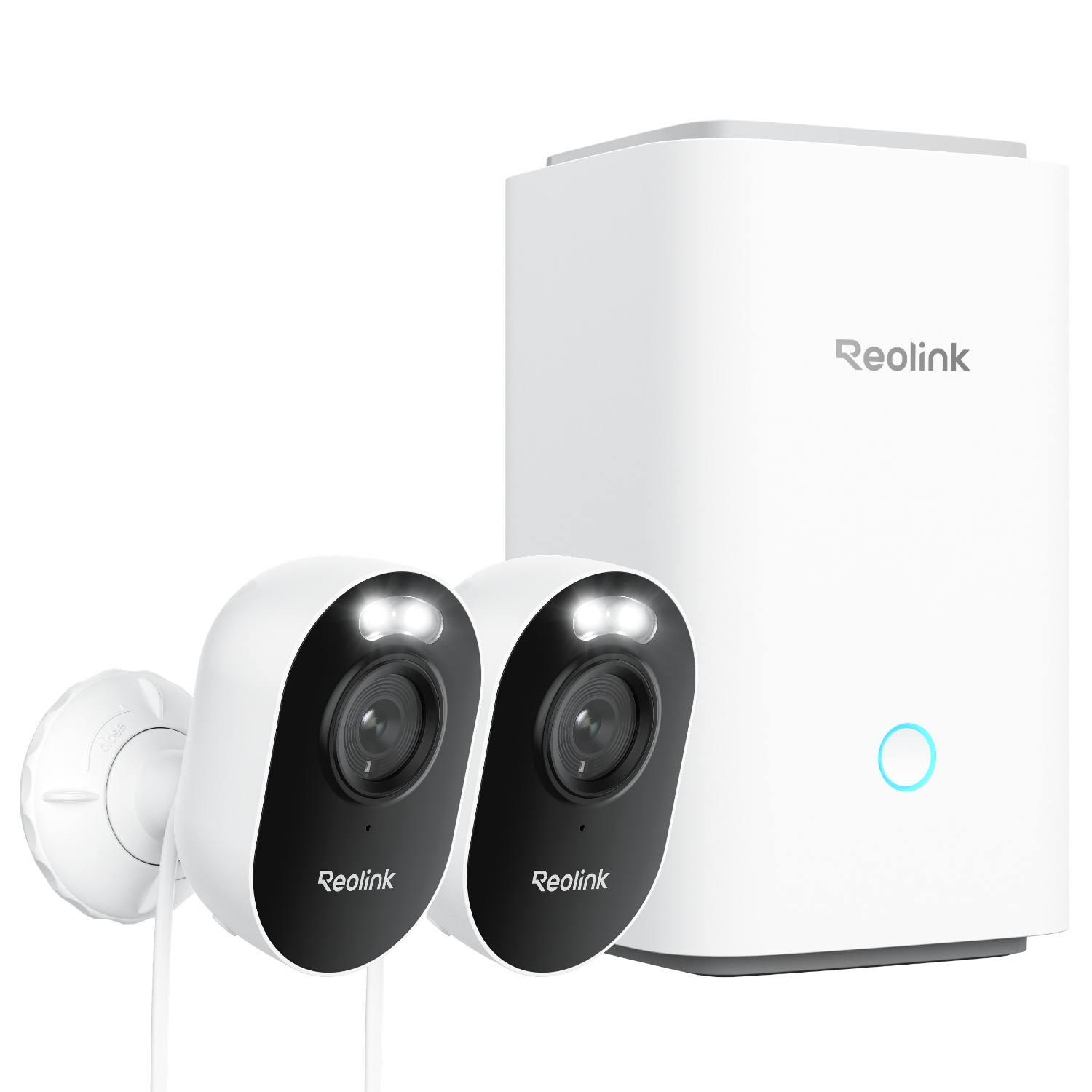

Home Hub with Lumus

Système de surveillance Wi-Fi 2K 4Mpx avec projecteur et vision nocturne

Home Hub sans Carte Micro SD + 2 Cameras (blanc)

Select Your Option

Points forts

Vision couleur jour et nuit

Offre des images détaillées en 2K 4MP, même dans l’obscurité.

Détection intelligente

La détection précise des personnes, des animaux et des véhicules permet de capturer ce qui compte.

Jusqu’à 8 caméras Reolink

Prend en charge toutes les caméras Reolink (à l’exception des caméras 2MP à batterie ou 4G).

Stockage crypté

Sécurisez vos enregistrements grâce à une technologie de cryptage de pointe, même hors ligne. Pas de frais mensuels.

Wi-Fi 6 double bande

Garantit une transmission de données plus rapide et plus stable sur des zones plus étendues.

Résumé intelligent

Accédez aux statistiques des événements avec des analyses hebdomadaires/mensuelles.

Spécifications

Reolink Lumus
Reolink Home Hub
Télécharger en PDF
Capteur d'image
1/2.7" CMOS Sensor
Résolution
2560 x 1440 (4.0 Megapixels) @15fps
Lentille
f=2.8mm, F=2, with IR Cut
Compression vidéo
H.264
Champ de vision
Horizontal: 107°
Vertical: 57°
Diagonal: 129°
Vision nocturne infrarouge
Up to 10m (33ft) (LED: 6pcs/0.8W/850nm)
(Auto-switching with IR-cut filter)
Vision nocturne en couleur
With spotlights: 2pcs/1.6W/6500K
Taux de rafraîchissement
Main stream: 2fps - 15fps (default: 15fps)
Sub stream: 4fps - 15fps (default: 10fps)
Code Taux
Main stream: 1024Kbps - 3072Kbps (default: 3072Kbps)
Sub stream: 64Kbps - 512Kbps (default: 256Kbps)
Audio
Two-way audio
Exigences en matière d'alimentation
DC 5.0V⎓1A, <5W
Port d'alimentation
DC power port
Fente pour carte SD
Supports Max. 256GB microSD card
Bouton de réinitialisation
YES
Entrée/sortie audio
Built-in microphone and speaker
Norme sans fil
IEEE 802.11 a/b/g/n
Fréquence de fonctionnement
2.4GHz/5GHz
Sécurité sans fil
WPA/WPA2
Navigateurs pris en charge
No
Système d'exploitation supporté
PC: Windows, Mac OS; Smartphone: iOS, Android
Protocoles et normes
SSL, TCP/IP, UDP, UPNP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Accès des utilisateurs
Max.20 users (1 admin & 19 users); Max.12 simultaneous streams (2 main & 10 sub streams)
Alarme intelligente
Motion detection; person detection; vehicle detection; animal detection
Modes d'enregistrement
Motion-triggered recording (default); Scheduled recording; 24/7 recording
Time Lapse
YES
Compatibilité avec les maisons intelligentes
Google Assistant; Alexa
Température
Operating Temperature: -10°C ~ 55°C
Humidité
Operating Humidity: 20% ~ 85%
Étanchéité
IP65
Dimensions
99 x 91 x 60mm
Poids
168g
Garantie limitée
2-year limited warranty. For support, visit https: //support.reolink.com/hc/en-us/

Galerie

Home Hub with Lumus-gallery-0
1LED d'État
2Projecteur
3Lentille
4Capteur de Lumière du Jour
5LED IR
6Micro Intégré

Home Hub with Lumus-gallery-1
1Haut-parleur
2Support
3Bouton de Réinitialisation
4Fente pour carte microSD

Home Hub with Lumus-gallery-2
1Bouton
2Voyant
3Ventilation

Home Hub with Lumus-gallery-3
1Port entrée CC
2Fente pour carte microSD
3Haut-parleur
4Port LAN
5Ventilation

Contenu de la Boîte

  • Reolink Home Hub ×1
  • Reolink Lumus ×2
  • Support ×2
  • Adaptateur Secteur ×2
  • 12V/1A Power Adapter ×1
  • Câble Réseau 1m ×1
  • Guide de Démarrage Rapide ×1

FAQ

Paiement & Expédition
What are your payment options? And what currencies do you support?
You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details of Payment Policy.
How much are the customs duties?
Customs duties depend on where your items are shipped from and shipped to. See details in the Shipping Fees part of Shipping & Delivery Policy.
Where can you ship? How long will it take to receive my items?
We sell security cameras to the United States, Germany, the United Kingdom and other dozens of countries.
And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are shipped from and shipped to. See details of Shipping & Delivery Policy.
Fonctions
Which Reolink cameras are compatible with Reolink Home Hub?
Reolink Home Hub Series products are currently compatible with all Reolink PoE cameras, Plug-in Wi-Fi cameras, and most of the recently released battery Wi-Fi cameras except for 2MP battery cameras and 4G cameras. Learn more about Reolink Home Hub compatibility: https://support.reolink.com/hc/en-us/articles/32379509281561-Reolink-Home-Hub-Compatibility/
Can all the IP cameras under the same router network connect to Reolink Home Hub?
Yes. All Reolink battery cameras, PoE cameras, and plug-in Wi-Fi cameras connected to the same router can connect to Reolink Home Hub.
Does the Reolink Home Hub support Wi-Fi 6?
Yes, Reolink Home Hub supports 2.4 & 5GHz dual-band Wi-Fi frequencies & Wi-Fi 6 technology, covering an area of up to 1000 square meters*.
*Data obtained under laboratory conditions. Results may vary in practice.
What are Event History and Weekly Summary?
Event History collects all 24/7 footage from connected cameras, enabling smart playback of detection events across multiple cameras and video filtering by date range, device, and event type.
Weekly Summary provides statistics on detection events, including daily alarms, alarm types, and involved devices, helping you understand when and where break-ins are most likely to occur.
Can the camera continue recording to Reolink Home Hub when the network connection is interrupted?
Yes, cameras can continue recording and save videos to the microSD card of the Reolink Home Hub during an Internet outage.
