RLK8-800V4

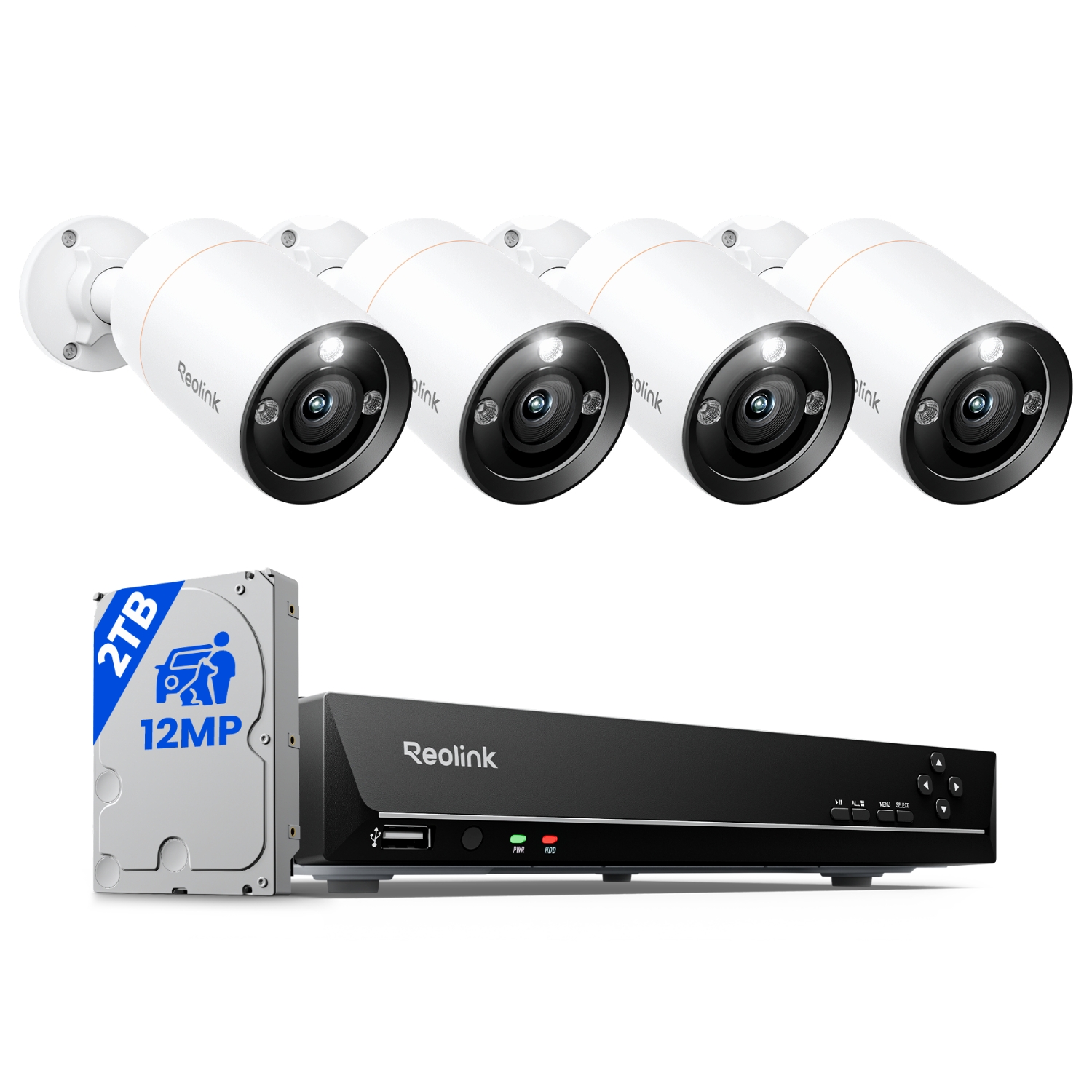

Système de surveillance 4K 8Mpx IK10 PoE avec détection intelligente

Kit standard (Blanc, 2TB HDD)

Select Your Option

Points forts

Ultra-haute définition

Offre une image 4K 8Mpx claire et fluide à 20 images par seconde.

Détection intelligente

La détection précise des personnes, animaux et véhicules permet de capturer ce qui compte.

Jusqu’à 16 To de stockage

Livré avec un disque dur 2 To, extensible jusqu’à 16 To (8 To via SATA et 8 To via eSATA).

Vision nocturne Spot-LED

Mode désactivé / Mode nuit intelligent / Mode minuteur.

Performances améliorées

Protection anti-vandalisme IK10 et étanchéité IP67.

Enregistrement 24h/24

Offre une protection continue sans interruption.

Spécifications

V800
RLN8-410
Télécharger en PDF
Capteur d'image
1/2.49" CMOS sensor
Résolution
3840×2160(8 Megapixels)@20FPS
Lentille
f=2.8mm F2.0
Compression vidéo
H.265 (more than 5MP); H.264 (others)
Champ de vision
Horizontal: 105°
Vertical: 56°
Diagonal: 125°
Vision nocturne infrarouge
Up tp 30 meters(100ft); LED: 2pcs/2W/850nm
(auto-switching with IR-cut filter)
Vision nocturne en couleur
With spotlights: 2pcs/3W/3000K (adjustable)
Taux de rafraîchissement
Main stream: 2fps - 20fps (default: 20fps)
Sub stream: 4fps - 15fps (default: 10fps)
Code Taux
Main stream: 1024Kbps - 8192Kbps (default: 6144Kbps)
Sub stream: 64Kbps - 512Kbps (default: 256Kbps)
Audio
Two-way audio
PoE
IEEE 802.3af, 48V, active
Exigences en matière d'alimentation
DC 12.0V⎓1A, <12W
Port d'alimentation
DC power port
Port Ethernet
One 10M/100Mbps; RJ45
Bouton de réinitialisation
YES
Entrée/sortie audio
Built-in microphone and speaker
Alarme intelligente
Motion detection; person detection; vehicle detection; animal detection
Modes d'enregistrement
Motion-triggered recording (default); scheduled recording; 24/7 recording
Température de fonctionnement
-10°C to 55°C (14°F to 131°F)
Humidité de fonctionnement
10% to 90%
Résistant aux intempéries
IP67
Dimensions
Φ117 × 86mm
Poids
604g
Garantie limitée
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/.

Galerie

RLK8-800V4-gallery-0

RLK8-800V4-gallery-1

RLK8-800V4-gallery-2

RLK8-800V4-gallery-3

Contenu de la Boîte

  • V800 ×4
  • RLN8-410 ×1
  • Adaptateur Secteur NVR ×1
  • Câble HDMI ×1
  • Souris USB ×1
  • Câble Réseau 1 m ×1
  • Câble réseau 18 m (non inclus dans le paquet sans câble de 18m) ×4

FAQ

Paiement & Expédition
What are your payment options? And what currencies do you support?
You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details of Payment Policy.
How much are the customs duties?
Customs duties depend on where your items are shipped from and shipped to. See details in the Shipping Fees part of Shipping & Delivery Policy.
Where can you ship? How long will it take to receive my items?
We sell security cameras to the United States, Germany, the United Kingdom and other dozens of countries.
And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are shipped from and shipped to. See details of Shipping & Delivery Policy.
Fonctions
Does the NVR support the person/vehicle/animal detection of my Reolink cameras?
Yes, the NVR in RLK8-800V4 supports the cameras' smart person/vehicle/animal detection.
How can I preview or play back the videos?
Method 1: Connect the NVR to a monitor or TV for preview or playback;
Method 2: Download FREE Reolink App or Client, add the NVR to the App or Client, and configure the settings, and then you can preview or play back the videos.
Can I connect Reolink NVR to one or more displayers?
You can connect up to two displayers to the NVR via HDMI or VGA (See the diagram below).
Connect Reolink NVR to Displayers
Cameras connected to the NVR will be shown on the displayer(s).
What is the difference if I buy cameras and the NVR separately instead of buying a whole system?
Cameras in the system cannot work alone. They have to work with the Reolink PoE NVR. If you buy standalone cameras and the NVR separately, the cameras can work alone.
Also, the network cables for cameras in the system are 18m long while those for standalone cameras are 1m long.
What ethernet cable can I use? What is the maximum distance between the camera and NVR?
Four 18m Ethernet cables are included for the four cameras in the kit. You can change them to longer ones if needed.
Reolink PoE cameras support CAT5, CAT5E, CAT6, CAT7 with 8 PIN Ethernet cables. The maximum length of the network cable they support is 330ft (100m). Please note that the data is obtained with a standard CAT5E Ethernet cable under specific test conditions and actual use may vary.
How long does the security camera systems store video footage?
The length of time to store video footage is closely related to the video code rate.
As for RLK8-800V4, the default bit rate of its cameras is 6144 kbps. Proximately, with the 4 cameras all working, this security system can store video footage for 8 days to its pre-installed 2TB HDD.
You can refer to "How Long Can Reolink NVR Record?"for more details.
If you want to keep longer video storage, you can expand the NVR's storage capacity.
Does my security system work with Google Assistant?
Sorry, the NVR system cannot work with Google Assistant.
