E1 Outdoor
Overview
Specs
Accessories
Review
Comparison
FAQs

5MP Clarity Plus 3× Optical Zoom

360° Coverage & Auto Tracking

Smart Detection, Instant Alerts

Multiple Storage Options

E1 Outdoor

PTZ WiFi Camera

  • 5MP Super HD
  • Person/Vehicle Detection
  • Pan, Tilt & Zoom

Feature Highlights

5MP Super HD

5Captures sharp details, ensuring nothing goes missed.

355° Pan & 50° Tilt

Covers more areas with full-scene visibility, no blind spots.

Auto Tracking

Detects and follows the target, keeping it in the frame at all times.

Smart Detection

Accurate person/animal/vehicle detection captures what matters.

Color Night Vision

Delivers full-color footage even after dark with spotlights.

Dual-Band Wi-Fi

2.4/5 GHz Wi-Fi offers a fast and stable network connection and data transmission.

Specs

Download PDF
Image Sensor
1/2.7" CMOS sensor
Video Resolution
2560x1920(5 Megapixels) @20fps
Lens
f=2.8-8mm, Max: F1.6
Video Compression
H.264
Field of View
Horizontal: 90°-50°;
Vertical: 53°-30°
Zoom Mode
3X optical zoom
Color Night Vision
With spotlights: 4pcs/3.3W/6500K
Infrared Night Vision
Up to 12 Meters (40ft); LED: 10pcs/850nm (Auto-switching with IR-cut filter)
Frame Rate
Main stream: 2fps - 20fps (default: 20fps);
Sub stream: 4fps - 15fps (default: 10fps)
Code Rate
Main stream: 2048Kbps - 5120Kbps (default: 3072Kbps);
Sub stream: 64Kbps - 512Kbps (default: 256Kbps)
Audio
Two-way audio
DC Power
DC 12.0V⎓1A
Power
DC power port
Ethernet
One 10M/100Mbps; RJ45
microSD Card Slot
Supports Max. 512GB microSD card
Reset Button
YES
Audio In/Out
Built-in microphone and speaker
Browsers Supported
Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Protocols & Standards
HTTPS, SSL, TCP/IP, UDP, HTTP,IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Maximal User Access
Max. 20 users (1 admin & 19 user);
Max. 12 simultaneous streams (2 main & 10 sub streams)
Smart Alarm
Motion detection; person detection; vehicle detection; animal detection
Recording Modes
Motion-triggered recording (default); Scheduled recording, 24/7 recording
Time Lapse
YES
Smart Home Compatibility
Google Assistant
PT Angle(Max.)
Pan: 355°, Tilt: 50°
Preset
Suppots 1 guard position & up to 64 preset positions
Power-off Memory Function
YES
Auto Tracking
YES
Wireless Standard
IEEE 802.11 a/ac/b/g/n
Operating Frequency
2.4GHz/5GHz
Wireless Security
WPA/WPA2
Temperature
Operating Temperature: -10°C~55°C (14°F~131°F)
Humidity
Operating Humidity: 20% ~ 85%
Weatherproof
IP65
Dimensions
Φ90*120mm
Weight
458g
Limited Warranty
2-year limited warranty. For support, visit
https://support.reolink.com/hc/en-us/.

Gallery

E1 Outdoor-gallery-0
1Daylight Sensor
2Spotlights
3Lens
4IR LEDs
5Status LED

E1 Outdoor-gallery-1
1microSD Card Slot
2Power
3Network
4Power Cable
5Speaker

What’s in the Box & Setup Guide (with Video)

  • E1 Outdoor ×1
  • Security Bracket ×1
  • Strap ×1
  • Power Adapter ×1
  • 1m Network Cable ×1

FAQs

How-to Videos

How to Connect Your Reolink Camera to Amazon Alexa within Only 5 Mins

How to Find Your IP Camera Address & Set up Remote Viewing

How to Set up Motion Detection via the Reolink App, Client, or NVR

Learn More
Payment & Shipping
What are your payment options? And what currencies do you support?

You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details of Payment Policy.

How much are the customs duties?

Customs duties depend on where your items are shipped from and shipped to. See details in the Shipping Fees part of Shipping & Delivery Policy.

Where can you ship? How long will it take to receive my items?

We sell security cameras to the United States, Germany, the United Kingdom and other dozens of countries.
And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are shipped from and shipped to. See details of Shipping & Delivery Policy.

Functions
Can this camera support time-lapse function?
Yes, the camera can support time-lapse. It can save time-lapse photos and videos to the SD card.
How to Set Up Time Lapse?
Does this camera support person/vehicle/animal detection?

Yes, this camera supports person/vehicle/animal detection.

Can this camera support smart home like Google Assistant?
Yes, currently, this camera can work with Google Assistant.
Tips: How to add this camera to Google Assistant?
How can I power up this camera?
The camera can be powered by a 12V 1A DC power adapter (A 1.2-meter power adaptor and a 4.5m extension cable are shipped with the camera). You can check what is in the box at the end of the overview page.
What kind of microSD card can I use?
This camera supports up to 512GB microSD cards with FAT32 format and Class 10 read & write speed.
Can I connect the camera to my PoE NVR or PoE NVR system?
Yes, Reolink WiFi cameras can be connected to Reolink PoE NVR in an indirect way. You can follow these steps to connect them:
Step 1: Connect the camera to a wifi router via wifi signals or an ethernet cable, and it needs to be powered via a power adapter.
Step 2: Connect the NVR to the same router by a network cable.
The NVR will pick up all the cameras on the same network.
Can I turn off the spotlights?
Yes, you can turn off the spotlights manually.
By default, the camera's spotlights are motion activated: it will turn on automatically when a motion is detected. You can turn them off or adjust the brightness to your liking.
Please note that with the spotlights on you can enjoy clear color night vision, but if the spotlights are turned off, you will only see black and white images at night.
Does the camera support NAS?
Yes, the camera supports NAS.
You may want to know How to have Reolink cameras record to my NAS.
Does the camera support cloud storage?
Yes. You can refer to Reolink Cloud to check it available countries.
Note: You can also save video clips into a micro SD card (supports up to 256GB), or a Reolink NVR.
Why can't I connect it to 3rd party softwares?
The RTSP and other ports may be disabled by default. You can launch Reolink Client, then go to Device Settings >> Network >> Advanced >> Port Settings to make sure all ports are enabled before using 3rd party softwares.
Does the camera work with my Reolink PoE NVR?
If you want to buy a new one: the currently on-sale NVRs work with all PoE and plug-in WiFi cameras.
If you already have one:
Please first refer to this article for its hardware version.
For the NVR with the hardware N7MB01, N6MB01, or N5MB01, it works with all PoE and plug-in WiFi cameras.
For the NVR with the hardware N2MB02, N3MB01, or H3MB18, it works with all PoE and plug-in WiFi cameras. But you can not have a full-resolution live view of the following cameras: RLC-1212A, RLC-1224A, Reolink Duo 2 PoE, Reolink Duo 2 WiFi, Reolink Duo Floodlight WiFi, Reolink Duo Floodlight PoE.
For the NVR with the rest hardwares such as H3MB17, H3MB02, and H3MB16, please refer to Introduction to Hardware Versions of Reolink NVRs for more detailed information.
  • 30-Day Money Back Guarantee
    30-Day Money Back Guarantee
  • Free Shipping on All Orders
    Free Shipping on All Orders
  • 2-Year Limited Warranty.
    2-Year Limited Warranty.
  • 24/6 Online Support 1-on-1
    24/6 Online Support 1-on-1

Discontinued

E1 Outdoor is discontinued. For any questions or product service, please contact Support for assistance.

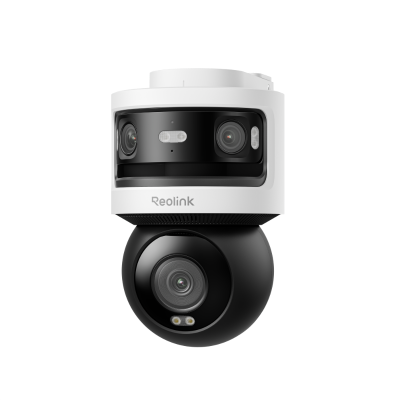

OMVI 3i WiFi
