2K HD head-to-toe view

Home Hub with Video Doorbell (Battery)

4MP dual-band Wi-Fi surveillance system, smart person/vehicle/package detection, weekly insights, easy installation & setup etc. Supports up to 8 Reolink cameras and two microSD cards of up to 512GB each.

  • 2K 4MP Head-to-Toe View
  • Person/Vehicle/Package Detection
  • Storage Encryption & Privacy Protection

Feature Highlights

2K 4MP Head-to-Toe View

1:1 expansive views ensure nothing is left at the front door.

Person/Vehicle/Package Detection

Detects accurately, reducing unnecessary alarms.

No Monthly Fees for Local Storage

Secure 24/7 recordings on up to 2× 1TB microSD cards.

Compatible Devices

Up to 8 Reolink cameras supported.

Privacy Protection

Keeps your footage confidential on Home Hub with a bank-level encryption algorithm, even offline.

Dual-Band Wi-Fi 6

Ensures faster, more stable data transmission across wider areas.

Specs

Reolink Video Doorbell (Battery)
Reolink Home Hub
Download PDF
Image Sensor
1/3.11" CMOS sensor
Resolution
2048x2048 (4 megapixels) at 15 frames/sec
Video Compression
H.264/H.265
Lens
f=1.2mm F=1.8 , fixed
Field of View
• Horizontal: 150°
• Vertical: 150°
• Diagonal: 180°
Audio
Two-way audio, noise reduction, echo suppression
Battery
7000mAh rechargeable battery (Battery life varies based on settings, usage & temperature.)
Hardwired
8-24V AC, 24V DC
Power Port
USB Type-C port
SD Card Slot
Supports Max. 256GB microSD card
Reset/Power Switch
YES
Audio In/Out
Built-in 2 microphones & a speaker
Wireless Standard
IEEE 802.11 a/b/g/n
Operating Frequency
2.4GHz/5GHz
Wireless Security
WPA/WPA2
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Protocols & Standards
SSL, TCP/IP, UDP, UPNP, SMTP, NTP, P2P
Smart Alarm
Motion detection/person/vehicle/package detection; visitor notification
Recording Modes
Motion-triggered recording
Smart Home Compatibility
Google Assistant, Alexa
Cloud Storage
Supports Reolink Cloud (available in some countries)
Rich Notification
YES (Reolink Cloud subscription required)
Quick Replies
YES
Operating Temperature
-10°C~55°C (14°F~131°F)
Operating Humidity
10% ~ 90%
Weatherproof
IP65 certified
Dimensions
160.0 x 48.0 x 29.5 mm
Weight
231g
Limited Warranty
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/.

Gallery

Home Hub with Video Doorbell (Battery)-gallery-0
1Button
2Indicator Light
3Vent

Home Hub with Video Doorbell (Battery)-gallery-1
1DC Input Port
2microSD Card Slot
3Speaker
4LAN Port
5Vent

Home Hub with Video Doorbell (Battery)-gallery-2
1Indicator Light
2Microphone
3Lens
4PIR Sensor
5Infrared Light
6Daylight Sensor
7Button Ring Light
8Button
9Lock Mounting Hole
10Terminal Block
11Power Button
12Type-C Charging Port
13microSD Card Slot
14Speaker

Home Hub with Video Doorbell (Battery)-gallery-3
1Indicator Light
2Microphone
3Lens
4PIR Sensor
5Infrared Light
6Daylight Sensor
7Button Ring Light
8Button
9Lock Mounting Hole
10Terminal Block
11Power Button
12Type-C Charging Port
13microSD Card Slot
14Speaker

What’s in the Box & Setup Guide (with Video)

  • Reolink Home Hub ×1
  • Reolink Video Doorbell （Battery） ×1
  • Power Adapter ×1
  • 1m Network Cable ×1
  • Pack of Jumper Cables ×1
  • Pack of Extension Cables ×1
  • Mounting Plate ×1
  • Wedge ×1
  • USB-C Cable ×1
  • Quick Start Guide ×2

FAQs

Functions
Can I pair this doorbell with my mechanical chime?
Yes, this doorbell is compatible with traditional mechanical chimes and works with transformers ranging from 8-24VAC, and 5VA-40VA.
Does Reolink Battery Doorbell require a subscription?
No, you don’t need any subscription for using this battery doorbell unless you want to use Reolink Cloud services for cloud storage or rich notification.
Which Reolink cameras are compatible with Reolink Home Hub?
Reolink Home Hub Series products are currently compatible with all Reolink PoE cameras, Plug-in Wi-Fi cameras, and most of the recently released battery Wi-Fi cameras except for 2MP battery cameras and 4G cameras. For more information, please refer to Reolink Home Hub Compatibility
What are Event History and Weekly Insights?
Event History collects all 24/7 footage from connected cameras, enabling smart playback of detection events across multiple cameras and video filtering by date range, device, and event type.
Weekly Insights provides statistics on detection events, including daily alarms, alarm types, and involved devices, helping you understand when and where break-ins are most likely to occur.
Can the camera continue recording to Reolink Home Hub when the network connection is interrupted?
Yes, cameras can continue recording and save videos to the microSD card of the Reolink Home Hub during an Internet outage.
Can I connect this battery doorbell to third-party apps, like Home Assistant?
The battery doorbell does not support Home Assistant directly. However, when connected to the Home Hub, it can integrate with Home Assistant, Synology, and other third-party apps via RTSP.
When will the video call feature on the battery doorbell be triggered?
A video call notification appears on your phone when someone presses the doorbell. If it only detects motion from passers-by, it will trigger person detection without initiating a video call.
Will my recordings be at risk if the video doorbell is stolen?
With built-in AES128 privacy protection and advanced on-device encryption, the Home Hub stores your recordings locally. You can secure recordings with an encryption code; without it, no one can access or delete recordings, even if the doorbell or SD card is stolen or reset.
Why is it recommended to connect the doorbell to the Home Hub?
Connecting the doorbell to the Home Hub extends battery life by an extra month, enables RTSP, and supports integration with Home Assistant and Synology. The hub also serves as a chime with customizable ringtones, and it can manage up to 8 devices, acting as a centralized security hub with encryption to keep data secure.
Why can't the doorbell's battery charge to 100% when powered by wire?
To extend the battery’s lifespan, the doorbell uses a trickle charging method. As a result, it will not charge to 100% when connected to a wired power source.
  • 30-Day Money Back Guarantee
    30-Day Money Back Guarantee
  • Free Shipping on All Orders
    Free Shipping on All Orders
  • 2-Year Limited Warranty.
    2-Year Limited Warranty.
  • 24/6 Online Support 1-on-1
    24/6 Online Support 1-on-1

Discontinued

Home Hub with Video Doorbell (Battery) is discontinued. For any questions or product service, please contact Support for assistance.

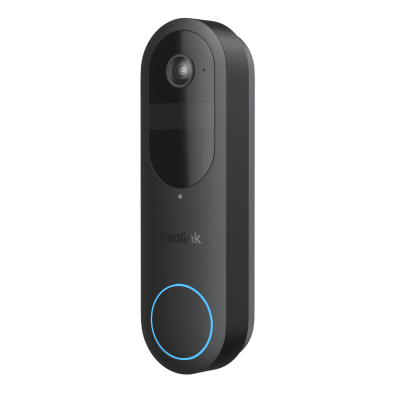

Reolink Video Doorbell (2nd Gen)
