4K UHD & 5× Optical Zoom

Smart Detection, Instant Deterrence

Multiple Storage Options

RLC-811WA

4K Wi-Fi 6 Security Camera with 5× Optical Zoom

  • 4K 8MP Ultra HD
  • 2.4/5 GHz Dual-Band Wi-Fi
  • Color Night Vision
  • Person/Vehicle/Animal Detection

Feature Highlights

8MP Ultra HD

Never miss a motion with ultra-high definition.

5× Optical Zoom

See finer details without compromising image quality.

Color Night Vision

Delivers vivid night footage with 5pcs/4W/6500K/450 lumens.

Two-Way Audio

Delivers double deterrence with a siren.

Dual-Band Wi-Fi 6

Ensures faster, more stable data transmission across wider areas.

IP67 Weatherproof

Withstands dust and water with the metal aluminum housing and IP67 weatherproofing.

Specs

Download PDF
Image Sensor
1/2.8"CMOS sensor
Resolution
3840 x 2160 (8 megapixels) @15fps
Video Compression
H.265
Zoom
5X optical zoom
Field of View
Horizontal: 31°- 105°; Vertical: 17°-55°
Infrared Night Vision
Up to 30 meters (100ft); LED: 4pcs/3w/850nm
(Auto-switching with IR-cut filter)
Color Night Vision
Spotlight: 5pcs/4w/6500k
Audio
Two-way audio
Smart Alarm
Motion detection; person detection; vehicle detection; animal detection
Recording
Motion-triggered recording (default); scheduled recording, 24/7 recording
DC Power
DC 12.0V⎓1A, <12W
WiFi Standard
IEEE 802.11 a/ac/b/g/n
Operating Frequency
2.4GHz/5GHz
WiFi Security
WPA/WPA2
System
Reset button
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Protocols & Standards
HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Maximal User Access
Max. 20 users (1 admin & 19 user);
max. 12 simultaneous streams (2 main & 10 sub streams)
Works with
Google Assistant
Local Storage
microSD card slot (Max. 512GB)
Operating Temperature
-10°C~+55°C  (14°F~131°F)
Operating Humidity
10% ~ 90%
Weatherproof
IP67
Size
80 x 72 x 238mm
Weight (Battery included)
863g
Limited Warranty
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/.

Gallery

RLC-811WA-gallery-0
1Antenna
2Aluminum Housing
3Bracket
44 Infrared LEDs
5High Resolution Lens
65 Spotlights

RLC-811WA-gallery-1

1. Loosen the screw (counterclockwise) with the wrench and adjust the camera in any direction. 2. After adjustment, tighten the screw to fix the camera.

RLC-811WA-gallery-2

1 microSD Card Slot

RLC-811WA-gallery-3
1Power
2Reset Button
3Network

What’s in the Box & Setup Guide (with Video)

  • RLC-811WA ×1
  • Power Adapter ×1
  • 1m Network Cable ×1
  • 4.5m Power Extension Cable ×1
*The data on the pages above are obtained under specific test conditions. Actual use may vary.

FAQs

How-to Videos

How to Connect Reolink Wireless Camera to PoE NVR

How to Find Your IP Camera Address & Set up Remote Viewing

How to Set up Motion Detection via the Reolink App, Client, or NVR

Learn More
Payment & Shipping
What are your payment options? And what currencies do you support?
You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details of Payment Policy.
How much are the customs duties?
Customs duties depend on where your items are shipped from and shipped to. See details in Shipping Fees part of Shipping & Delivery Policy.
Where can you ship? How long will it take to receive my items?
Reolink sells security cameras to the United States, Germany, the United Kingdom and other dozens of countries.
And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are shipped from and shipped to. See details of Shipping & Delivery Policy.
Functions
Does the camera work with my Reolink PoE NVR?
If you want to buy a new one: the currently on-sale NVRs work with all PoE and plug-in WiFi cameras.
If you already have one:
Please first refer to this article for its hardware version.
For the NVR with the hardware N7MB01, N6MB01, or N5MB01, it works with all PoE and plug-in WiFi cameras.
For the NVR with the hardware N2MB02, N3MB01, or H3MB18, it works with all PoE and plug-in WiFi cameras. But you can not have a full-resolution live view of the following cameras: RLC-1212A, RLC-1224A, Reolink Duo 2 PoE, Reolink Duo 2 WiFi, Reolink Duo Floodlight WiFi, Reolink Duo Floodlight PoE.
For the NVR with the rest hardwares such as H3MB17, H3MB02, and H3MB16, please refer to Introduction to Hardware Versions of Reolink NVRs for more detailed information.
Why can't I connect it to 3rd party softwares?
The RTSP and other ports may be disabled by default. You can launch Reolink Client, then go to Device Settings >> Network >> Advanced >> Port Settings to make sure all ports are enabled before using 3rd party softwares.
Can this camera support time-lapse function?
Yes, the camera can support time-lapse. It can save time-lapse photos and videos to the SD card.
How to Set Up Time Lapse?
Does this camera support person/vehicle detection?
Yes, this camera supports person/vehicle detection. It also supports animal detection.
Can this camera be used outdoors/indoors?
This camera can be used both indoors and outdoors.
It is IP67 certified weatherproof and its operating temperature is from -10°C to 55°C (14°F to 131°F), perfect for outdoor and indoor usage.
Can this camera support smart home like Google Assistant?
Yes, currently, this camera can work with Google Assistant.
Tips: How to add this camera to Google Assistant?
How can I power up this camera?
The camera can be powered by a 12V 1A DC power adapter (A 1.2-meter power adaptor and a 4.5m extension cable are shipped with the camera). You can check what is in the box at the end of the overview page.
What kind of micro SD card can I use?
This camera supports up to 256GB micro SD cards with FAT32 format and Class 10 read & write speed.
Can I connect the camera to my PoE NVR or PoE NVR system?
Yes, Reolink WiFi cameras can be connected to Reolink PoE NVR in an indirect way. You can follow these steps to connect them:
Step 1: Connect the camera to a wifi router via wifi signals or an ethernet cable, and it needs to be powered via a power adapter.
Step 2: Connect the NVR to the same router by a network cable.
The NVR will pick up all the cameras on the same network.
Can I turn off the spotlights?
Yes, you can turn off the spotlights manually.
By default, the camera's spotlights are motion activated: it will turn on automatically when a motion is detected. You can turn them off or adjust the brightness to your liking.
Please note that with the spotlights on you can enjoy clear color night vision, but if the spotlights are turned off, you will only see black and white images at night.
Does the camera support NAS?
Yes, the camera supports NAS.
You may want to know How to have Reolink cameras record to my NAS.
  • 30-Day Money Back Guarantee
    30-Day Money Back Guarantee
  • Free Shipping on All Orders
    Free Shipping on All Orders
  • 2-Year Limited Warranty.
    2-Year Limited Warranty.
  • 24/6 Online Support 1-on-1
    24/6 Online Support 1-on-1

Discontinued

RLC-811WA is discontinued. For any questions or product service, please contact Support for assistance.

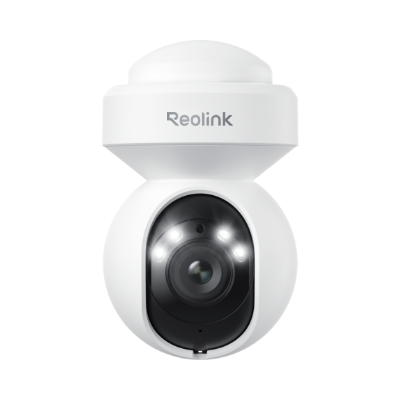

E1 Outdoor Pro
