RLK12-800WTM4

4K 2.4/5 GHz Wi-Fi PTZ Dual-Lens Security System

  • 4K 8MP UHD
  • Dual View, Dual Tracking
  • 2.4/5 GHz Dual-Band Wi-Fi

Feature Highlights

4K 8MP Ultra HD

Never miss clearer views and finer details.

Dual-Band Wi-Fi 6

Ensures faster, more stable data transmission across wider areas.

Smart Detection

Accurate person/animal/vehicle detection captures what matters.

Local Storage

Secure footage locally with a pre-installed 2TB HDD, expandable up to an 8TB HDD.

Dual View, Dual Tracking

Detects, follows, and tracks the target with a wide-angle lens and telephoto lens.

IP65 Weatherproof

Withstands rain, dust, storms, and other harsh weather conditions with IP65 housing.

Specs

Reolink TrackMix WiFi
RLN12W
Download PDF
Image Sensor
1/3"+1/2.8"CMOS Sensor
Video Resolution
Up to 3840 x 2160 (8.0 megapixels) at 25 frames/sec
Lens
f=2.8mm@F=1.6，f=8mm@F=1.6
Video Compression
H.264,H.265
Field of View
• Horizontal: 104°-38°
• Vertical: 60°-21°
Zoom Mode
6X hybrid zoom
Day & Night
IR-cut filter with auto-switching
Infrared Night Vision
Up to 30 meters (100ft) (LED: 2pcs/850nm)
Color Night Vision
Spotlights: 2pcs/6500K/450 lumens
Audio
Two-way audio
DC Power
DC 12.0V⎓2A, <12W
Power
DC power port
System
Reset button
Ethernet
One 10M/100Mbps RJ45
Storage
Micro SD card slot (Max. 256GB)
Audio
Built-in microphone and speaker
Pan & Tilt Range
Pan: 355°, Tilt: 0°~90°
Pan Speed
2.5°-90°/s (Speed can be set)
Tilt Speed
1.5°-60°/s (Speed can be set)
Preset Points
32
Auto Tracking
Support
Wireless Standard
IEEE 802.11a/b/g/n
Operating Frequency
2.4GHz/5GHz
Wireless Security
WPA-PSK/WPA2-PSK
Frame Rate
• Mainstream: 2fps - 25fps
• Substream: 4fps - 20fps
Code Rate
• Mainstream: 4096Kbps -8192Kbps
• Substream: 128Kbps -1228Kbps
Browsers Supported
Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Smart Alarm
Motion detection; person detection; vehicle detection; pet detection
Record Modes
Motion/scheduled recording (default: motion recording)
Protocols & Standards
HTTP, HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP,RTMP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Maximal User Access
Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams);
20 users (1 admin account & 19 user accounts)
Work with
Google Assistant
Temperature
Operating temperature: -10°C~+55°C (14°F~131°F)
Humidity
Operating humidity: 10% ~ 90%
Weatherproof
IP65
Dimensions
228*147*129mm
Weight
1.211kg
Limited Warranty
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/ .

Gallery

RLK12-800WTM4-gallery-0
1Infrared LED
2Lens
3Mic
4Daylight Sensor
5Spotlight

RLK12-800WTM4-gallery-1
1microSD Card Slot
2Reset Button

RLK12-800WTM4-gallery-2
1Power LED
2HDD LED
3USB Port

RLK12-800WTM4-gallery-3
1Antenna
2Reset Button
3Power Input
4USB Port
5HDMI Port
6VGA Port
7Audio Output
8LAN Port (For Internet)
9LAN Port (For IP camera)

What’s in the Box & Setup Guide (with Video)

  • RLN12W ×1
  • Reolink TrackMix WiFi ×4
  • NVR Power Adapter ×1
  • HDMI Cable ×1
  • USB Mouse ×1
  • 1m Network Cable ×5
  • Power Adapter ×4
  • 4.5m Power Extension Cable ×4

FAQs

Payment & Shipping
What are your payment options? And what currencies do you support?
You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details of Payment Policy.
How much are the customs duties?
Customs duties depend on where your items are shipped from and shipped to. See details in the Shipping Fees part of Shipping & Delivery Policy.
Where can you ship? How long will it take to receive my items?
We sell security cameras to the United States, Germany, the United Kingdom and other dozens of countries.And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are shipped from and shipped to. See details of Shipping & Delivery Policy.
Functions
Does my security system work with Google Assistant?
Sorry, the NVR system cannot work with Google Assistant.
How long does the security camera system store video footage?
The length of time to store video footage is closely related to the video code rate.
As for RLK12-800WTM4, the default bit rate of its cameras is 4096 kbps. Proximately, with the 4 cameras all working, this security system can store video footage for 12 days to its pre-installed 2TB HDD.
You can refer to "How Long Can Reolink NVR Record?" for more details.
If you want to keep longer video storage, you can expand the NVR's storage capacity.
Does the NVR support the person/vehicle/animal detection of my Reolink cameras?
Yes, the NVR in RLK12-800WTM4 supports the cameras' smart person/vehicle/animal detection.
How can I preview or playback the video?
Method 1: Connect the NVR to a monitor or TV for preview or playback.
Method 2: Download FREE Reolink APP or Client, add the NVR to the APP or Client, configure the settings, and then you can preview or playback the videos.
Can I connect Reolink NVR to one or more displayers?
You can connect a maximum of two displayers with the NVR via HDMI or VGA (see the diagram below).

Cameras connected to the NVR will be shown on the displayer(s).
Can I connect my previously purchased Reolink PoE camera to the WiFi NVR?
Yes, PoE cameras can work with the Wi-Fi NVR. But you need to first power on the PoE camera with a PoE injector, PoE switch, or power adapter, and connect it to the NVR or to the same network as the NVR.
What are the maximum transmission distances between the NVR and the cameras, as well as between the NVR and the router?
The distance between the NVR and the router primarily depends on the length of the Ethernet cable used. In optimal conditions, the distance between the NVR and the cameras can reach up to 120 meters.
Can I turn off the spotlights?
Yes, you can turn off the spotlights manually.
By default, the camera's spotlights are motion activated: it will turn on automatically when a motion is detected.
You can turn them off or adjust the brightness to your liking.
Please note that with the spotlights on you can enjoy clear color night vision, but if the spotlights are turned off, you will only see black and white images at night.
Can I switch between 2.4GHz and 5GHz Wi-Fi networks?
Yes, our latest hardware version of Wi-Fi NVR supports manual switching between 2.4GHz and 5GHznetwork.
  • 30-Day Money Back Guarantee
    30-Day Money Back Guarantee
  • Free Shipping on All Orders
    Free Shipping on All Orders
  • 2-Year Limited Warranty.
    2-Year Limited Warranty.
  • 24/6 Online Support 1-on-1
    24/6 Online Support 1-on-1

Discontinued

RLK12-800WTM4 is discontinued. For any questions or product service, please contact Support for assistance.

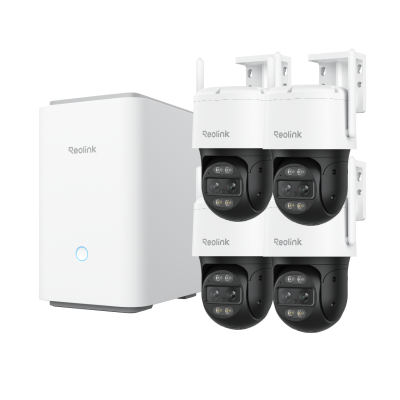

Home Hub Pro with TrackMix WiFi
