Up to 100ft IR Night Vision

RLK16-1200B8-A

Smart 12MP PoE Security System with 24/7 Recording

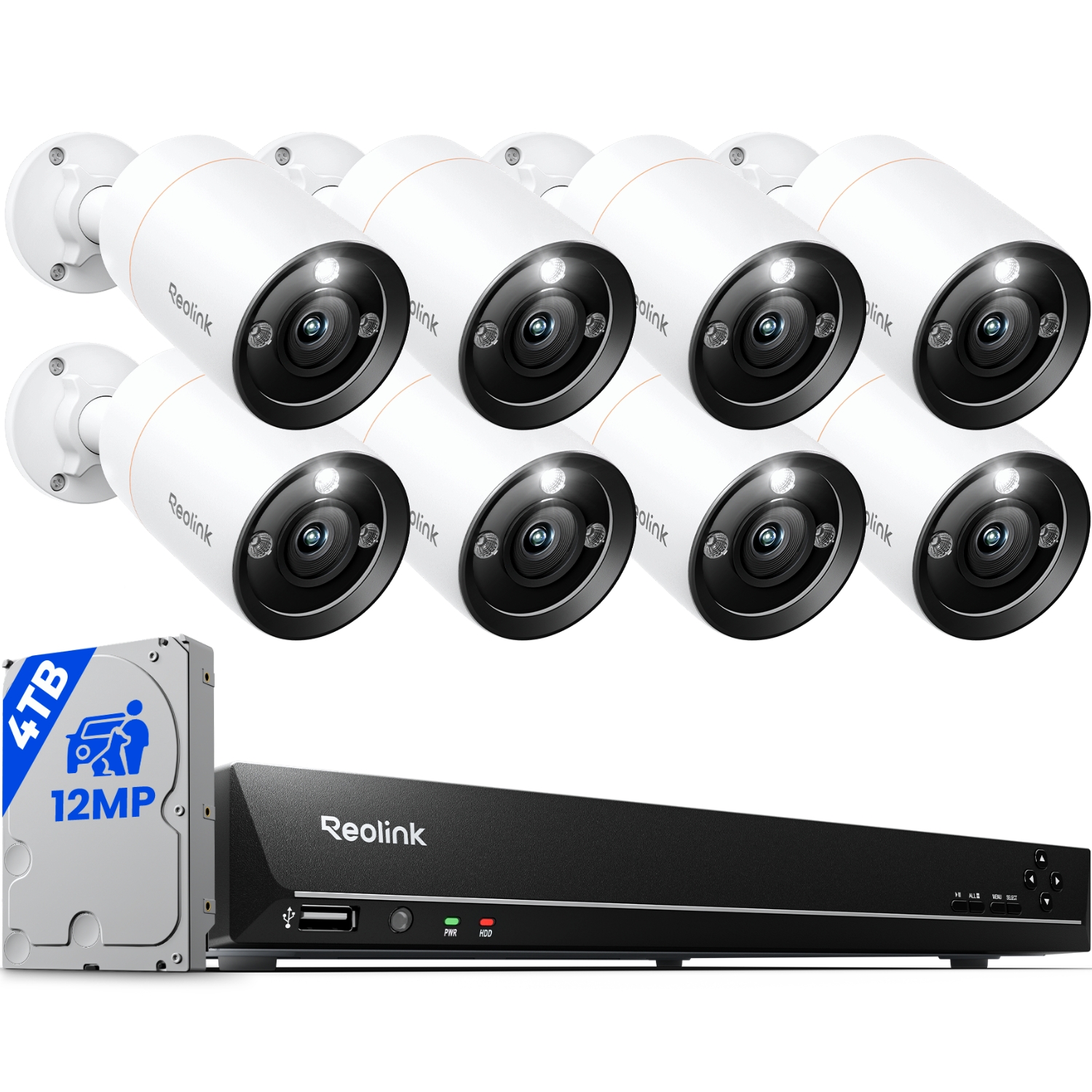

8-Cam Bundle (4.0mm, White, 4TB HDD)

Select Your Option

Feature Highlights

Ultra-High Definition

Delivers a clear, smooth 12MP view at 25 FPS.

Smart Detection

Accurate person/animal/vehicle detection captures what matters.

Up to 16TB Storage

Comes with a pre-installed 4TB HDD, expandable up to 16TB HDD storage (2×8TB via SATA).

Black & White Night Vision

Up to 100ft infrared night vision

24/7 Recording

Secure around the clock without interruption.

Time Lapse

Captures the essence of life; records hours of change in minutes.

Specs

RLN16-410

RLC-1212A(4.0mm)

B1200(4.0mm)

Download PDF

Hardware

N6MB01

IP Video Input

Up to 24 IP cameras (max.16 wired cameras)

Audio Input

Cameras with built-in mic

Video Output

VGA, HDMI

Display Resolution

•HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768;
•VGA: 1920*1080, 1280*1024, 1280*720, 1024*768

Audio Output

1-channel, RCA

Live View/Playback Resolution

7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p

Video Format

H.265, H.264

Synchronous Playback

Up to 4 channels

SATA

2 x SATA interface (1 × 4TB HDD included)

Capacity

Up to 16TB (max. 8TB capacity for each HDD)

External HDD

USB Interface

2 × USB 2.0

Network Interface

•1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN;
•16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera

Max. Power Per Port

25W

Supported Standard

IEEE 802.3 af/at

Network Protocol

HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

Browser Supported

Firefox, Chrome, Edge, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Max. User Access

20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Power Supply

DC 48V~54V

Power Consumption

<10W (without HDD & PoE)

Working Environment

•Temperature: -10°C~+45°C (14°F~113°F);
•Humidity: 10%~90%

Dimensions

330 × 45 × 285mm

Weight

2.4kg

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/.

Gallery

1Mount

2Speaker

3Metal Aluminum Case

4Spotlight

5IR LEDs

6High Definition Lens

7Daylight Sensor

8Built-In Mic

1. Unscrew it (counterclockwise) to loosen the bracket and adjust the camera in any direction.
2. After adjustment, twist it back to fix the camera.

1Power

2Reset Button

3Network

4Waterproof Lid

1USB Port

2Power LED/HDD LED

3Control Panel

1On/Off Switch

2RJ45

3Power Input

4Audio Out

5USB Port

6HDMI Port

7VGA Port

8Network

What’s in the Box & Setup Guide (with Video)

RLN16-410 ×1
B1200 ×8
NVR Power Adapter ×1
HDMI Cable ×1
USB Mouse ×1
1m Network Cable ×1
18m Network Cable ×8

FAQs

How-to Videos

How to Set up the Reolink PoE Camera System (3 Mins)

How to Reset Your Reolink NVR in 5 Quick Ways

How to Set up Motion Detection via the Reolink App, Client, or NVR

Learn More

Payment & Shipping

What are your payment options? And what currencies do you support?

You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details of Payment Policy.

How much are the customs duties?

Customs duties depend on where your items are shipped from and shipped to. See details in Shipping Fees part of Shipping & Delivery Policy.

Where can you ship? How long will it take to receive my items?

We sells security cameras to the United States, Germany, the United Kingdom and other dozens of countries.
And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are shipped from and shipped to. See details of Shipping & Delivery Policy.

Functions

Does the NVR support the person/vehicle detection of my Reolink cameras?

Yes, the NVR in RLK16-1200B8-A supports the cameras' smart person/vehicle detection.

How can I pre-view or play back the video?

Method 1: Connect the NVR to a monitor or TV for preview or playback;
Method 2: Download FREE Reolink APP or Client, add the NVR to the APP or Client, configure the settings, and then you can preview or play back the videos.

Can I connect Reolink NVR to one or more displayers?

You can connect maximum two displayers with the NVR via HDMI or VGA (See the diagram below).
Connect Reolink NVR to Displayers

Cameras connected to the NVR will be shown on the displayer(s).

What is the difference if I buy cameras and NVR separately instead of buying a whole system?

The cameras in the kit cannot work alone. They have to work with the Reolink PoE NVR. If you buy standalone cameras and the NVR separately, the cameras can work alone.
Also, the network cables for cameras in the kit are 18m long while those for standalone cameras are 1m long.

What ethernet cable can I use? What is the maximum distance between the camera and NVR?

We have included 8 18M ethernet cables for the 8 cameras included in the kit. You can change them to longer ones if needed.
Reolink PoE cameras support CAT5, CAT5E, CAT6, CAT7 with 8 PIN Ethernet cables. The maximum length of the network cable they support is 330ft (100m). Please note that the data is obtained with a standard CAT5E Ethernet cable under specific test conditions and actual use may vary.

How long does the security camera systems store video footage?

The length of time to store video footage is closely related to the video code rate.
As for RLK16-1200B8-A, the default bit rate of its cameras is 8192 kbps. Proximately, with the 8 cameras all working, this security system can store video footage for 4 days to its pre-installed 4TB HDD.
You can refer to "How Long Can Reolink NVR Record?"for more details.
If you want to keep longer video storage, you can expand the NVR's storage capacity.

Does my security system work with Google Assistant?

Sorry, the NVR system cannot work with Google Assistant.
