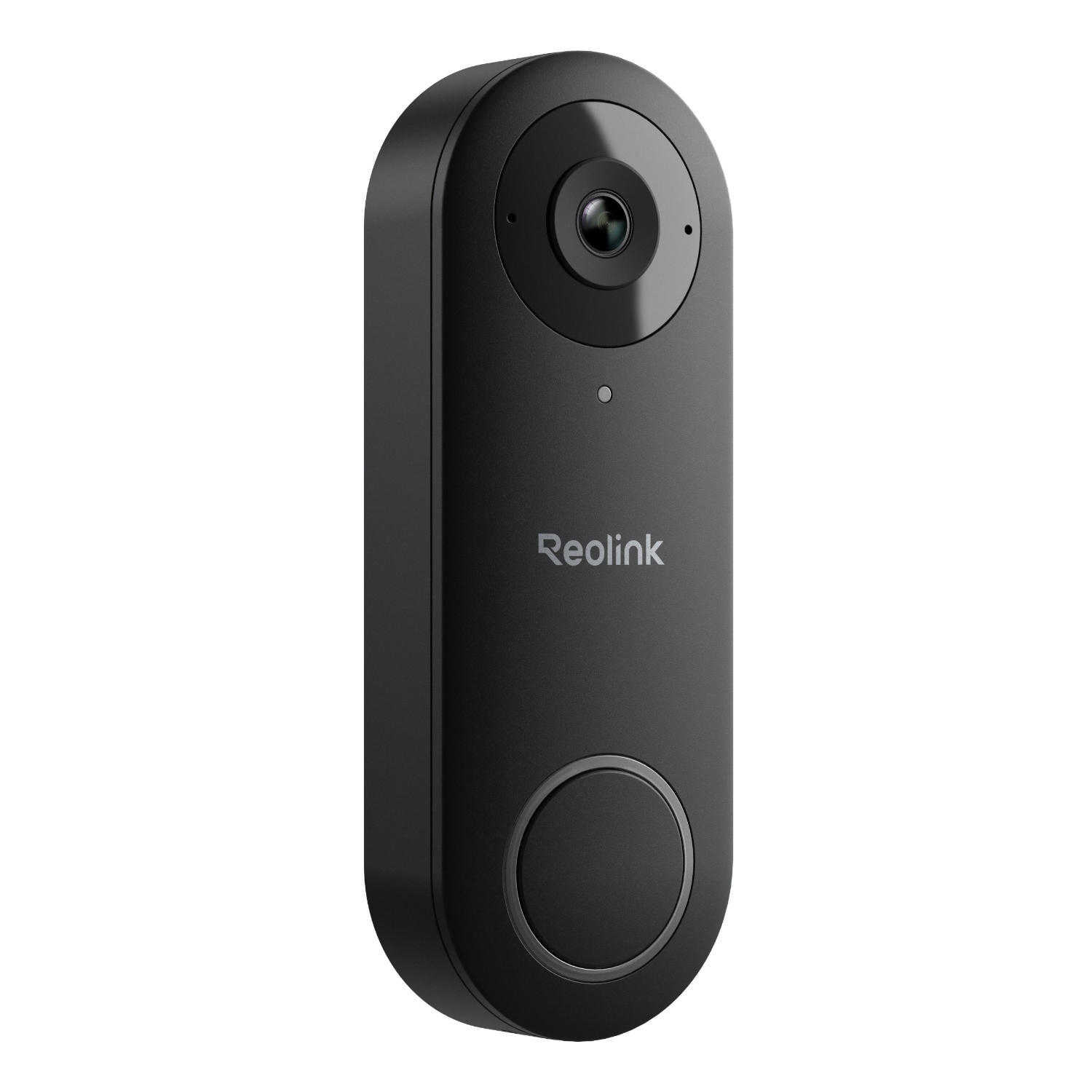

Reolink Video Doorbell WiFi

Sonnette vidéo Wi-Fi intelligente 2K+ filaire avec carillon

1 Pack (noir)

Fonctionnalités principales

5Mpx, format 4:3

Une image nette couvrant des zones étendues.

Détection intelligente des personnes

Détecte les mouvements et personnes, puis envoie des notifications sur votre téléphone.

Wi-Fi double bande

La prise en charge du Wi-Fi 2,4/5 GHz améliore la qualité de la connexion.

Stockage local sans frais supplémentaires

NVR Reolink / FTP / NAS / carte microSD jusqu’à 256 Go pour des enregistrements 24h/24.

Carillon inclus

Volume réglable et sonneries personnalisables pour répondre à vos besoins.

Audio bidirectionnel

Discutez en temps réel ; Prise en charge des réponses rapides personnalisées.

Spécifications

Reolink Videocitofono WiFi (Nero)
Chime Reolink (version AU)
Chime Reolink (version GB)
Chime Reolink (version EU)
Chime Reolink (version US)
Reolink Video Doorbell WiFi (White)
Garantie limitée
Garanzia limitata di 2 anni. Per l'assistenza, visitare il sito https://support.reolink.com/hc/en-us/
Capteur d'image
Sensore CMOS da 1/2,7"
Résolution vidéo
Predefinito: 2560×1920 (5 megapixel) @20FPS
Lentille
f=2,26 mm F=2,0, con taglio IR
Videoformat
H.264
Champ de vision
Orizzontale: 135°
Verticale: 100°
Diagonale: 180°
Enregistrement préalable au mouvement
SÌ
Audio
Audio bidirezionale, riduzione del rumore, soppressione dell'eco
Réponses rapides
SÌ
Câblé
12 24VAC 50/60Hz, DC 24V
Puissance
Power port
Système
Reset button
Ethernet
One 10M/100Mbps RJ45
Stockage
microSD card slot (Max. 256GB), works with Reolink NVR
Audio
Built-in two microphones & one speaker
Norme sans fil
IEEE 802.11a/b/g/n
Fréquence de fonctionnement
2,4GHz/5GHz
Sécurité sans fil
WPA-PSK/WPA2-PSK
Taux de rafraîchissement
Mainstream: 2fps - 20fps (default: 20fps)
Substream: 4fps - 15fps (default: 10fps)
Taux de codage
Mainstream: 1024Kbps - 6144Kbps (default: 4096Kbps)
Substream: 64Kbps - 512Kbps (default: 256Kbps)
Navigateurs pris en charge
Edge, Chrome, Firefox, Safari
Système d'exploitation supporté
PC: Windows, Mac OS; Smartphone: iOS, Android
Alarme intelligente
Rilevamento di movimento/persone; notifica dei visitatori
Modes d'enregistrement
Registrazione del movimento (predefinita); registrazione 24/7; registrazione programmata
Protocoles et normes
HTTPS, IPv4, UPNP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Fonctionne avec
SÌ
Rich Notification
YES
Température
Temperatura di funzionamento: -10°C – +50°C (14°F – 122°F)
Humidité
Umidità di funzionamento: 10% – 90%
Étanchéité
IP65
Dimension
133mm (H) ×48mm (W) ×23mm (T)
Poids
96g

Contenu de la Boîte

  • Reolink Video Doorbell WiFi ×1
  • Reolink Chime ×1
  • Plaque de montage ×1
  • Cale ×1
  • Adaptateur d'alimentation de 1,5 m ×1
  • Rallonges d'alimentation de 4,5m/0.1m ×1
  • Lot de Câbles de Démarrage ×1
  • Lot de Câbles de Rallonge ×1
  • Câble Réseau 1 m ×1

FAQ

Paiement & Expédition
What are your payment options? And what currencies do you support?
You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details of Payment Policy.
How much are the customs duties?
Customs duties depend on where your items are shipped from and shipped to. See details in the Shipping Fees part of Shipping & Delivery Policy.
Where can you ship? How long will it take to receive my items?
We sell security cameras to the United States, Germany, the United Kingdom and other dozens of countries.
And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are shipped from and shipped to. See details of Shipping & Delivery Policy.
Fonctions
Which NVR can work with the doorbell?
The doorbell can work with NVRs with the Hw_H3MB18, Hw_N3MB01, Hw_N2MB02, Hw_N5MB01, Hw_N6MB01 and Hw_N7MB01 hardware.
If you want to buy a new compatible NVR, all of them on sale can work with the doorbell.
Does this doorbell use the same app for remote access as other Reolink products?
Yes. You can check your Reolink Video Doorbell WiFi at the same Reolink App as other Reolink products.
Where should I place Reolink Video Doorbell WiFi?
You can place the doorbell camera on the entry points of your property such as your front door, and you are recommended to mount it 1.2m high off the ground. A 15° wedge is contained to help set up the right angle or alter the angle.
Does the video doorbell support 24/7 recording?
Yes, you can set Reolink Video Doorbell WiFi to record 24/7 continuously to a microSD card (not included) or an NVR. Or you can set it to record only when a person/motion is detected during the scheduled time periods.
Does Reolink Video Doorbell WiFi use batteries?
No, it is hardwired. You need to power it via power adapter, or via the pre-existing doorbell wiring (12-24V AC; 24V DC).
Can I control the volume of the Chime?
Yes, you can control the volume of the Chime by pressing its button. Initially the volume goes up when you press the button. After the volume reaches the highest, it goes down if you keep pressing the button.
Please note that the settings of the Chime can only be done locally; you can NOT control the Chime via App or Client.
Can I use the Reolink Video Doorbell WiFi offline?
Yes. Without the Internet connection, the doorbell camera can still detect motion/person and record videos to the SD card (purchased separately). But it cannot send alerts to your mobile devices and you cannot live view it.
If the chime is connected to the doorbell, it will chime when the doorbell is pressed, regardless of the Internet connection.
Can I use Reolink Video Doorbell WiFi with my pre-existing chimes?
No, it does not work with chimes of other brands or pre-existing mechanical chimes. But the doorbell can be powered by the existing wiring from your mechanical chime, which will no longer ring in such circumstances.
Does Reolink Video Doorbell WiFi require a subscription?
No, you don’t need any subscription for using Reolink Video Doorbell WiFi unless you want to use Reolink Cloud services for cloud storage or rich notification.
Does it support third-party products?
No, Reolink Video Doorbell WiFi and its chime cannot work with doorbells or chimes from other brands. You can add it to some third-party software for live view, however. Please contact our support team if you have any concerns about protocols.
What's the difference between Video Doorbell PoE and Video Doorbell WiFi?
Reolink doorbell video camera series has two versions: the PoE version and the WiFi version. The main difference between the two versions lies in their ways of getting network connections.
To get access to the network, Reolink video doorbell PoE needs to use network cables. It can get both the network and power via PoE injector/ PoE NVR by an Ethernet cable. Or it can get network access by connecting to a router via a network cable, and be powered via a 24V 0.5A power adapter, 12~24V AC pre-existing doorbell wiring.
Reolink video doorbell WiFi supports 2.4/5 GHz dual-band WiFi. And you can power it on via a 24V 0.5A power adapter or 12~24V AC pre-existing doorbell wiring.
What is the difference between the black and white versions?
Apart from their body colors, the white and black doorbells feature different screen ratios: 3:4 for the white version and 4:3 for the black one. This makes the white doorbell ideal for front doors with a long, narrow porch, ensuring a complete view of visitors from head to toe. In contrast, the black doorbell is designed for doors with a more open front view, offering a wider horizontal field of vision. Additionally, the white version can detect packages, which helps prevent porch piracy.
Does the doorbell work with Reolink IoT devices (Reolink Floodlight, etc.)? How can they be linked?
Yes, the doorbell works with Reolink IoT devices, including Reolink Floodlight PoE/WiFi. The specific functions supported depend on the doorbell.
When Reolink Floodlight is linked to a doorbell, the floodlight and the built-in siren will be triggered once the doorbell detects a person. Click here to see how to link the doorbell to Reolink Floodlight.
