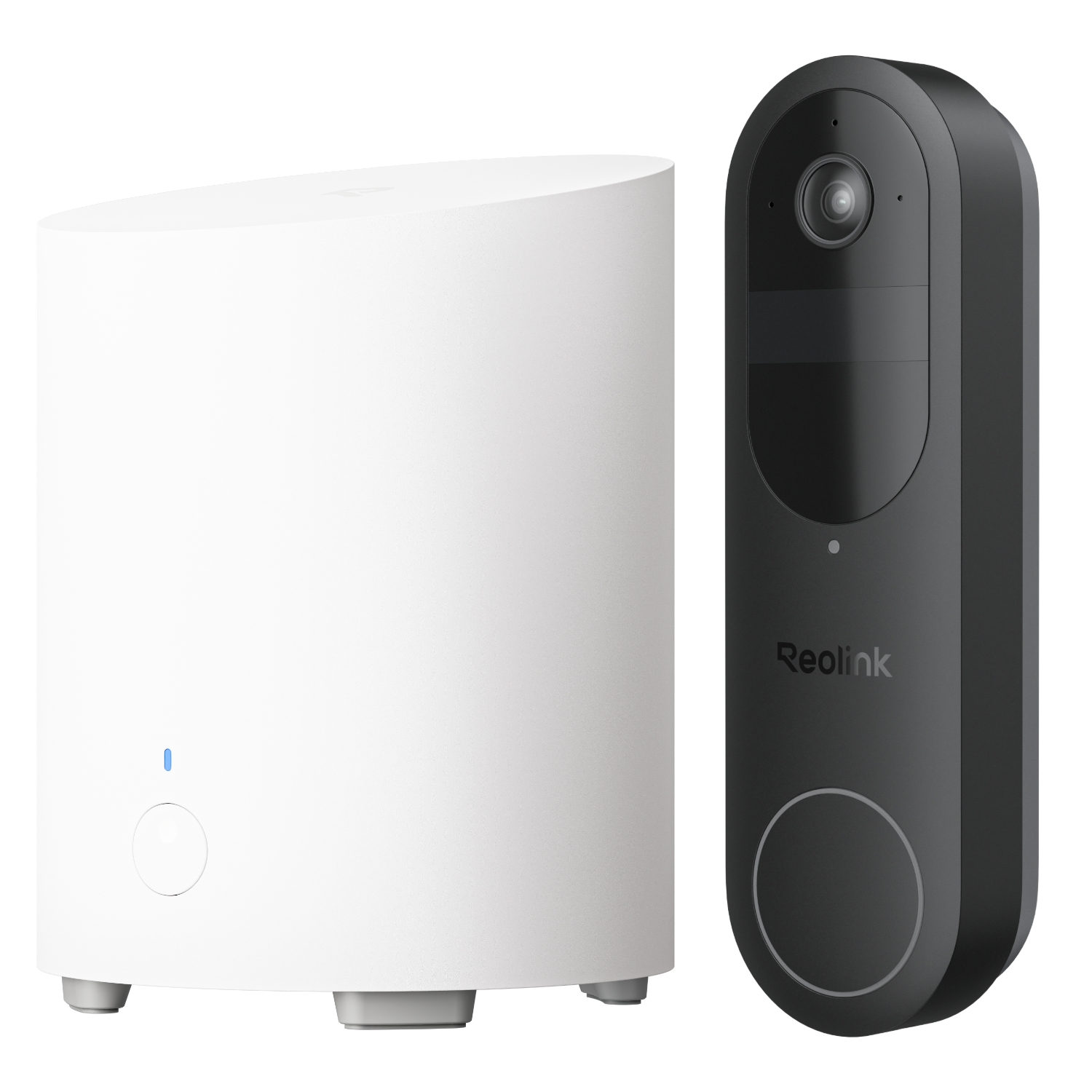

Reolink Video Doorbell (Battery) with Home Hub Mini
Overview
Specs
Accessories
Review
Comparison
FAQs

2K HD head-to-toe view

Reolink Video Doorbell (Battery) with Home Hub Mini

2K 4MP Black Battery-Powered Video Doorbell Kit with Home Hub Mini

1 Pack (Black)

Select Your Option

Feature Highlights

2K 4MP Head-to-Toe View

1:1 expansive views ensure nothing is left at the front door.

Person/Vehicle/Package Detection

Detects accurately, reducing unnecessary alarms.

No Monthly Fees for Local Storage

Secure 24/7 recordings on up to a 1TB microSD card.

Compatible Devices

Up to 8 Reolink cameras supported.

Privacy Protection

Keeps your footage confidential on Home Hub Mini with a bank-level encryption algorithm, even offline.

Two-Way Audio

Supports instant communication to greet visitors or talk with a delivery person.

Specs

Reolink Video Doorbell (Battery)
Reolink Home Hub Mini
Download PDF
Image Sensor
1/3.11" CMOS sensor
Resolution
2048x2048 (4MP) @15fps
Video Compression
H.264/H.265
Lens
f=1.2mm, F=1.8
Field of View
Horizontal: 150°
Vertical: 150°
Diagonal: 180°
Audio
Two-way audio, noise reduction
Battery
7000mAh rechargeable battery (battery life varies based on settings, usage & temperature.)
Hardwired
8-24V AC, 24V DC
Power Port
USB Type-C
SD Card Slot
Max. 256GB
Reset/Power Switch
Yes
Audio In/Out
Built-in 3 microphones & a speaker
Wireless Standard
IEEE 802.11 a/b/g/n
Operating Frequency
2.4GHz/5GHz
Wireless Security
WPA/WPA2
OS Supported
PC: Windows, Mac OS; smartphone: iOS, Android
Protocols & Standards
SSL, TCP/IP, UDP, UPNP, SMTP, NTP, P2P
Smart Alarm
Motion detection/person/vehicle/package detection; visitor notification
Recording Modes
Motion-triggered recording
Smart Home Compatibility
Google Assistant, Alexa
Cloud Storage
Yes (available in some countries)
Rich Notification
Yes (Reolink Cloud subscription required)
Quick Replies
Yes
Operating Temperature
-10°C~55°C (14°F~131°F)
Operating Humidity
10% ~ 90%
Weatherproof
IP65 certified
Dimensions
160.0 x 48.0 x 29.5 mm
Weight
231g
Limited Warranty
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/.

Gallery

Reolink Video Doorbell (Battery) with Home Hub Mini-gallery-0
1Indicator Light
2Button
3Vent
4USB Port
5LAN Port
6microSD Card Slot
7DC Input Port

Reolink Video Doorbell (Battery) with Home Hub Mini-gallery-1
1Indicator Light
2Microphone
3Lens
4PIR Sensor
5Infrared Light
6Daylight Sensor
7Button Ring Light
8Button
9Lock Mounting Hole
10Terminal Block
11Power Button
12Type-C Charging Port
13microSD Card Slot
14Speaker

What’s in the Box & Setup Guide (with Video)

  • Reolink Home Hub Mini ×1
  • Reolink Video Doorbell （Battery） ×1
  • Pack of Jumper Cables ×1
  • Pack of Extension Cables ×1
  • 1m Network Cable ×1
  • Power Adapter ×1
  • USB-C Cable ×1
  • Mounting Plate ×1
  • Wedge ×1
  • Quick Start Guide ×1

FAQs

Payment & Shipping
What are your payment options? And what currencies do you support?
You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details of Payment Policy.
Where can you ship? How long will it take to receive my items?
We sell security cameras to the United States, Germany, the United Kingdom and other dozens of countries.
And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are shipped from and shipped to. See details of Shipping & Delivery Policy.
How much are the customs duties?
Customs duties depend on where your items are shipped from and shipped to. See details in the Shipping Fees part of Shipping & Delivery Policy.
Functions
When will the video call feature on the battery doorbell be triggered?
A video call notification appears on your phone when someone presses the doorbell. If it only detects motion from passers-by, it will trigger person detection without initiating a video call.
Can the camera continue recording to the Reolink Home Hub Mini when the network connection is interrupted?
Yes, cameras can continue recording and save videos to the microSD card in the Reolink Home Hub mini during an Internet outage.
Does Reolink Battery Doorbell require a subscription?
No, you don’t need any subscription to use this battery doorbell unless you want to use Reolink Cloud services for cloud storage or Rich Notification.
Can I pair this doorbell with my mechanical chime?
Yes, this doorbell is compatible with traditional mechanical chimes and works with transformers ranging from 8-24VAC and 5VA-40VA.
Will my recordings be at risk if the video doorbell is stolen?
With the built-in AES128 encryption method, the Home Hub Mini stores your recordings locally and keeps them confidential. Protect your footage with an encryption key;
without it, no one can access or delete recordings, even if the doorbell or microSD card is stolen or reset.
What are Event History and Weekly Summary?
The Event History collects all 24/7 footage from connected cameras, enabling smart playback across multiple cameras and video filtering by date, device, and event type. The Weekly Summary provides statistics on detection events, including daily alarms, alarm types, and involved devices, helping you know when and where break-ins are most likely to occur.
Can all the IP cameras in the same router network connect to the Reolink Home Hub Mini?
Yes. All Reolink battery cameras, PoE cameras, and plug-in Wi-Fi cameras connected to the same router can connect to the Reolink Home Hub Mini.
Can a Reolink IP camera be added to multiple Home Hubs or NVRs?
No, one Reolink IP camera can only be added to one home hub or NVR.
Which Reolink cameras are compatible with the Reolink Home Hub Mini?
Currently, Reolink Home Hub Series products support all Reolink PoE cameras, plug-in Wi-Fi cameras, and most recently released battery Wi-Fi cameras, except for 2MP battery cameras and 4G cameras.
