RLN16-410

NVR PoE a 24 canali con HDD da 4TB per la registrazione continua 24/7

NVR PoE a 24 canali per la registrazione continua 24/7, senza HDD preinstallato

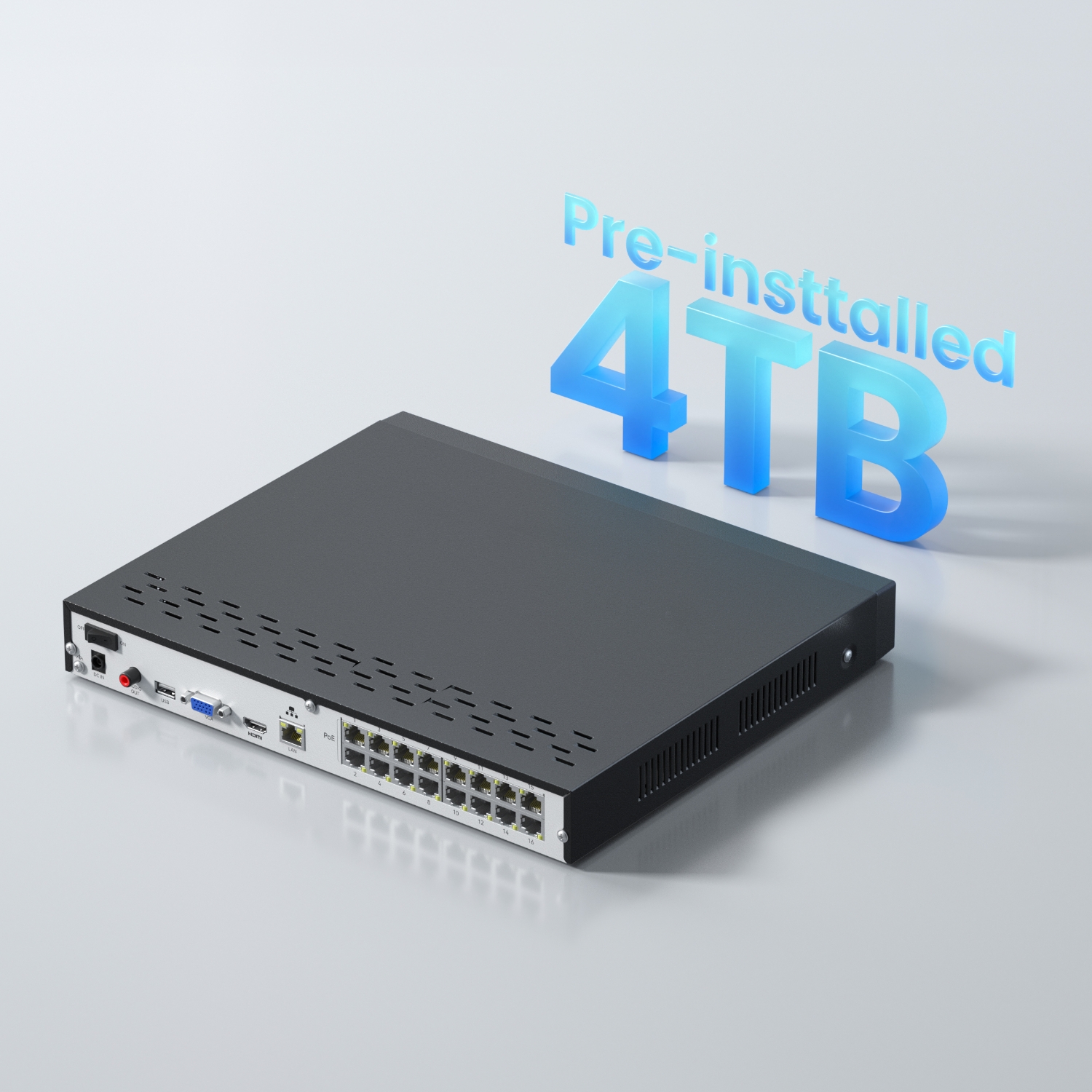

RLN16-410 (HDD 4TB)

Select Your Option

Caratteristiche principali

16 porte PoE

Supporta fino a 24 telecamere.

Fino a 16MP UHD

Immagini in altissima definizione.

Ampia memoria locale

Supporta fino a 16TB di HDD (2 × 8TB).

Registrazione continua 24/7

Conserva le registrazioni localmente, riproducile in qualsiasi momento.

Plug & Play

Installazione PoE semplice con connessioni stabili.

Compressione video

Codifica e decodifica H.265/H.264.

Specifiche

Scarica come PDF
Hardware
N6MB01
Ingresso Video IP
Fino a 24 telecamere IP (max. 16 telecamere cablate)
Ingresso Audio
Telecamere con microfono integrato
Uscita video
VGA, HDMI
Risoluzione dello schermo
HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768
VGA: 1920*1080, 1280*1024, 1280*720, 1024*768
Uscita Audio
1 canale, RCA
Risoluzione Visualizzazione Live/Riproduzione
7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p
Formato Video
H.265, H.264
Riproduzione Sincrona
Fino a 4 canali
SATA
2 interfacce SATA (1 HDD da 4 TB incluso)
Capacità
Fino a 16 TB (capacità massima di 8 TB per ciascun HDD)
HDD esterno
No
Interfaccia USB
2 × USB 2.0
Interfaccia Rete
1, interfaccia Ethernet RJ-45 10/100 Mbps autoadattiva per LAN/WAN
16, interfaccia Ethernet RJ-45 10/100 Mbps autoadattiva PoE per telecamera IP
Potenza max. per porta
25W
Standard supportato
IEEE 802.3 af/at
Protocollo Rete
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Browser Supportato
Firefox, Chrome, Edge, Safari
OS Supportato
PC: Windows, Mac OS; Smartphone: iOS, Android
Massimo Accesso di Utente
20 utenti (1 account amministratore e 19 account utente); fino a 12 flussi video simultanei (10 flussi secondari e 2 flussi principali)
Alimentazione Elettrica
DC 48V~54V
Consumo di Alimentazione
<10 W (senza HDD e PoE)
Ambiente di funzionamento
Temperatura: -10°C~+45°C (14°F~113°F); umidità: 10%~90%
Dimensioni
330 × 45 × 285mm
Peso
2.4kg
Garanzia Limitata
Garanzia limitata di 2 anni. Per assistenza, visitare il sito https://support.reolink.com/hc/en-us/

Galleria

RLN16-410-gallery-0

RLN16-410-gallery-1

Cosa c'è nella scatola & Guida alla configurazione (con Video)

  • RLN16-410 ×1
  • Adattatore di Alimentazione NVR ×1
  • Cavo HDMI ×1
  • Mouse USB ×1
  • Cavo di rete da 1 m ×1

Domande frequenti

Pagamento & Spedizione
What are your payment options? And what currencies do you support?
You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details of Payment Policy.
How much are the customs duties?
Customs duties depend on where your items are shipped from and shipped to. See details in the Shipping Fees part of Shipping & Delivery Policy.
Where can you ship? How long will it take to receive my items?
We sell security cameras to the United States, Germany, the United Kingdom and other dozens of countries.
And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are shipped from and shipped to. See details of Shipping & Delivery Policy.
Funzioni
Does the NVR support the person/vehicle/animal detection of my Reolink cameras?
If you want to buy a new one:
Yes, the currently available NVRs support the cameras' smart person/vehicle/animal detection.
If you already have one:
RLN16-410 with the newest hardware versions (H3MB18/N6MB01) supports the cameras' smart person/vehicle detection. Check Hardware Version of Reolink NVRs for detailed information.
How to expand the NVR storage capacity?
You can add HDDs to the NVR via SATA ports.
The currently available RLN16-410 supports max.16TB in total (2脳8TB via SATA).
Can I add a PoE switch?
Yes, there are 3 methods.
Method 1: Plug the PoE NVR and the PoE switch to the same router via Ethernet cable. Then plug the PoE cameras into the PoE switch or PoE NVR.
Method 2: Plug the PoE switch into the PoE NVR, and then connect the NVR LAN port to the router.
Method 3: Plug the PoE switch to your router, then connect the NVR LAN port to your PoE switch.
For more information, please refer to How to Connect PoE Switch Router and PoE NVR
Note: By adding PoE switches, you will not expand the number of cameras supported by the NVR, since its video channels are immutable.
Can I connect the NVR to the router wirelessly?
No, the NVR can only connect to the router via an ethernet cable.
Can I connect the NVR to the third-party cameras?
It's not suggested to do so. Compatibility issues may occur with third-party cameras. Please contact our support team if you have any concerns about protocols.
Why can't I find the Talk button for two-way audio on my Reolink App/Client when my camera, which supports this function, is connected to the NVR?
Before using this function, please check if you have updated the firmware on your NVR to the latest version. Here is a step-by-step instruction on how to upgrade it: https://support.reolink.com/articles/900004568363-Reolink-Firmware-Update-Guide/#h_01J5SBY58BJTK30SEMQWTMSETM
How many wired IP cameras (including PoE & plug-in Wi-Fi cameras) does this NVR support at most?
The NVR supports 24 channels, allowing a maximum of 24 cameras. It can support up to 16 wired IP cameras (including PoE & plug-in Wi-Fi cameras) .
Please note that a Reolink dual-lens camera occupies two video channels.
How many battery-powered Wi-Fi cameras does this NVR support at most?
Only the RLN16-410 with hardware N6MB01 supports connecting battery-powered Wi-Fi cameras, with a maximum of 24. The number of battery-powered Wi-Fi cameras that can be connected is 24 minus the number of wired IPCs. For more information, please refer to Introduction to Hardware Versions of Reolink NVRs
