Reolink TrackMix LTE

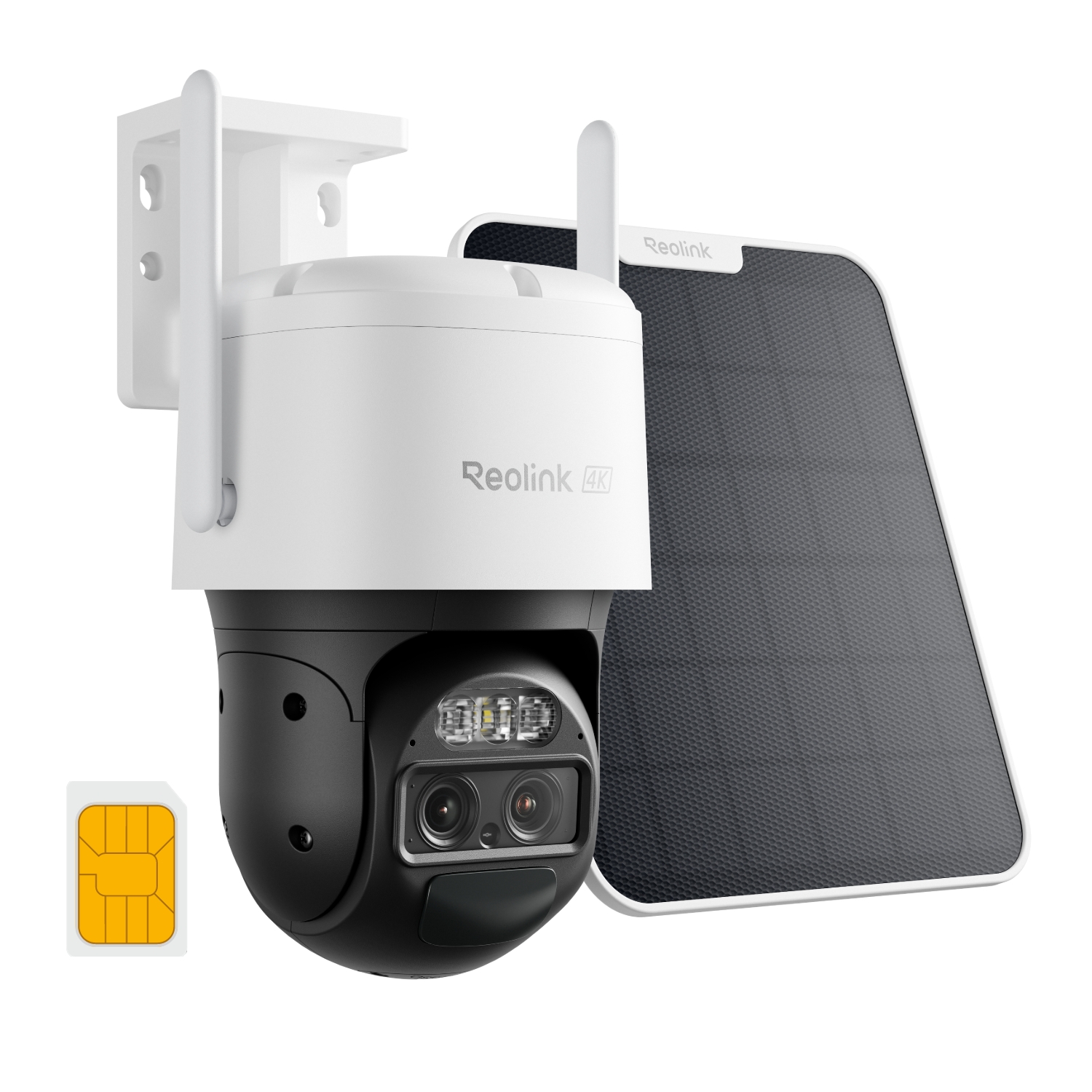

4G LTE-beveiligingscamera met dubbele lens, automatische zoomtracking, batterij en Solar Panel 2 (Wit), SIM-kaart inbegrepen

4G LTE batterijgevoede beveiligingscamera met dubbele lens, wit met automatisch zoomvolgen

1 Camera (4K, White) +1 Solar Panel 2(White) + SIM Card

Belangrijkste kenmerken

4K UHD-resolutie

Scherpe beelden, dag en nacht.

Dubbele lens

6× hybride zoom met telelens en macrolens.

Automatisch volgen

Volgt het doel met 355° zwenken en 90° kantelen.

Nachtzicht

Infrarood nachtzicht tot 30 m (100 ft).

Detectie van personen/voertuigen/dieren

Nauwkeurige meldingen voor premiumbeveiliging.

4G LTE en opladen met zonne-energie

Draadloze netwerkverbinding en onuitputtelijke zonne-energie.

Specificaties

Beeldsensor
1/3"CMOS Sensor
Videoresolutie
Up to 3840×2160 (8.0 Megapixels) at 15 frames/sec
Lens
f=2.8mm@F=1.6,f=8mm@F=1.6
Video Compression
H.264,H.265
Gezichtsveld
• Horizontal: 108.4°-38°
• Vertical: 57.3°-21.2°
Zoom Mode
6X hybrid zoom
Dag & Nacht
IR-cut filter with auto-switching
Infrared Night Vision
Up to 30 Meters (100ft)(LED: 2pcs/850nm)
Color Night Vision
Spotlight: 1pcs/6500K/450 Lumens
Audio
Two-way audio
Battery
7.2V 5100mAh rechargeable battery (Battery life varies based on settings, usage & temperature)
36.72Wh(Power capacity)
Solar
Reolink Solar Panel 2
DC Power
5V/2A
Stroom
USB Type-C port
Systeem
Reset button
Opslag
Micro SD card slot (max. 128GB)
Audio
Built-in microphone and speaker
Pan &Tilt
Pan: 355°, Tilt: 0°~90°; (Speed can be set)
Preset Points
32
Auto Tracking
Support
Frequency Bands
Europe version: LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8
USA version: LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5
Australia version: LTE FDD: B1/B3/B5/B7/B8/B28 LTE-TDD: B40 WCDMA: B1/B5/B8
Japan version: LTE-FDD:B1/3/8/18/19/26
LTE-TDD:B41
WCDMA:B1/6/8/19
Transmission Data
LTE FDD: Max 10Mbps(DL), Max 5Mbps(UL) LTE TDD: Max 8.96Mbps(DL), Max 3.1Mbps(UL) HSPA+: Max 42Mbps(DL), Max 5.76Mbps(UL) UMTS: Max 384Kbps(DL), Max 384Kbps(UL)
Framesnelheid
• Mainstream: 10fps - 15fps
• Substream: 10fps - 15fps
Codetarief
• Mainstream: 1024Kbps -4096Kbps
• Substream: 64Kbps -512Kbps
Ondersteund door besturingssysteem
PC: Windows, Mac OS; Smartphone: iOS, Android
Slimme wekker
PIR detection/person detection/vehicle detection/pet detection
Opnamemodus
Motion-triggered recording
Protocols & Standards
SSL, TCP/IP, UDP, UPNP, SMTP, NTP, P2P
Maximum User Access
Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Work with
Google Assistant, Reolink Cloud
Operating Temperature
-10°C~+55°C (14°F~131°F)
Operating Humidity
20% ~ 85%
Weatherproof
IP65
Afmeting
228.2*147*129mm
Gewicht
1.4KG
Beperkte garantie
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/

Wat zit er in de doos & installatiehandleiding (met video)

  • Montagesjabloon ×1
  • Snelstartgids ×1
  • Reolink TrackMix LTE ×1
  • Riem ×1
  • USB-C-kabel ×1

Veelgestelde vragen

How-to Videos

Payment & Shipping
What are your payment options? And what currencies do you support?
You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details of Payment Policy.
How much are the customs duties?
Customs duties depend on where your items are shipped from and shipped to. See details in Shipping Fees part of Shipping & Delivery Policy.
Where can you ship? How long will it take to receive my items?
Reolink sells security cameras to the United States, Germany, the United Kingdom and other dozens of countries.
And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are shipped from and shipped to. See details of Shipping & Delivery Policy.
Functions
What is dual-tracking?
Dual-tracking refers to the two ways that a Trackmix camera simultaneously uses to auto track an object in both the wide-angle and zoomed views.
In the panoramic view, which is captured by the camera's wide-angle lens, the camera pans and tilts to keep the detected objects within its field of view; In the zoomed view, which is produced by the two lenses cooperatively, the camera zooms in to the targeted object (which is within the camera's field) to closely follow its movement. It's notable that the Trackmix camera uses advanced technology to restore details and definition to the zoomed-in image, enhancing the image quality.
This can help you track the situation and details at the same time, without manually making the camera pan, tilt or zoom in.
What does the PIR sensor work for?
PIR sensors are more sensitive to the infrared radiations from humans or animals, and thus can dramatically reduce false alarms caused by fluttering moths or flying twigs.
Its full name is passive infrared sensor. It measures the infrared (IR) light radiating from objects with a temperature above absolute zero. When the amount of infrared radiation changes, it triggers detection.
Can this camera be used outdoors/indoors?
This camera can be used both indoors and outdoors.
It is weatherproof and its operating temperature is from -10°C to 55°C (14°F to 131°F), perfect for outdoor and indoor usage.
Can I talk to someone via the Reolink App? (Two-way audio)
Yes, this security camera features two-way audio, which means you can listen and talk to someone in real time with simple clicks in App.
Can this camera support smart home like Google Assistant?
Yes, currently, this camera can work with Google Assistant.
Tips: How to add this camera to Google Assistant?
How can I charge this camera? Is the solar panel a must?
You have two charging options (including solar charging):
Option 1. Have the camera connected to a solar paner for non-stop power supply.
(????Also recommended as the most friendly charging option for the cam's battery.)
Option 2. Charge the camera (with its non-removable battery) via a 5V 2A USB charger. (Please note that it's ok to charge the cam while it's working, but not for long.)
(Note: To purchase one Reolink Solar Panel, you can choose "1 Camera + 1 Solar Panel" option while buying this camera; or you can buy it separately from https://store.reolink.com/accessories/.)
How long does the battery last?

The camera comes with a rechargeable battery. Normally, the battery lasts for about 3 months per charge (Actual use varies based on settings, use conditions and environmental factors.) When the battery level goes down to 10%, the camera will send you a low-battery notification.
For non-stop power supply, you can connect the camera to a Reolink Solar Panel (purchased separately).

Does this camera support person/vehicle/pet detection?
Yes, this camera supports person/vehicle detection and pet detection (beta). Currently, pet detection is used to detect cats and dogs and is in beta testing.
Can I turn off the spotlights and siren?
Yes, you can turn off the spotlights and siren manually.
By default, the camera's spotlights and siren are motion activated: they will be turned on automatically when a motion is detected. You can turn them off, adjust the brightness of spotlights, or customize the siren to your liking.
Please note that with the spotlights on you can enjoy clear color night vision, but if the spotlights are turned off, you will only see black and white images at night.
Does the camera have an SD card?
No, the camera does not come with a micro SD card built in. But it has a micro SD card slot.
This camera supports Max. 128GB micro SD cards with FAT32 format and Class 10 or higher read & write speed.
How does 4G work on this security camera?

Similar to your cellular phone, cellular security cameras need a SIM card with a data plan to tramsmit video signals over 3G/4G network.
The common SIM cards offered by carriers like T-Mobile and Vodafone can work for Reolink 4G camers (as they can for your cellular phone). Click to check supported carriers in available countries and regions for this camera.
You can also contact our support team for consultation.

Does the camera work on 5G/4G/3G/2G?
The camera works on 4G networks. It also supports 3G, which is not recommended though (since wireless companies are working to retire older network technologies). It does not supports 5G or 2G SIM card.
Yet it does not matter you use a 4G or 5G mobile phone to access the camera. The camera needs a SIM card of its own, which is totally irrelevant to your mobile's SIM card.
Note:
(1) The camera does not support WiFi connection.
(2) As of July 1, 2022 T-Mobile’s older 3G UMTS network will be retired.
How much data does the camera use?
Data usage of this camera depends on the bitrate you set up. 1 hour of live feed in 4MP mode for one channel (default bitrate: 3Mbps) will use about 2GB of data. (In 4MP mode, only one channel is available for live feed). If you use 1GB of data to stream live feed in Fluent mode for one channel (default bitrate: 512kbps), you can watch for about 5 hours, while 1GB of data to stream live feed in Fluent mode for two channels at the same time (default bitrate: 512kbps for each) will last for about 2.5 hours. Based on that, you can estimate the data usage to choose the right data plan for you.
Can this camera support time-lapse function?
Yes, the camera can support time-lapse. It can save time-lapse photos and videos to the SD card.
How to Set Up Time Lapse?
Does the camera support cloud storage?
Yes. You can refer to Reolink Cloud to check it available countries.
Note: You can also save video clips into a micro SD card (supports up to 128GB).
What is hybrid zoom?
Hybrid zoom is a combination of optical zoom and digital zoom. Reolink Trackmix series are equipped with a wide-angle lens and a telephoto lens. First, the wide-angle lens provides digital zoom. Then it switches to the telephoto lens for optical zoom. After that, the telephoto lens zooms in digitally. Thus, compared to digital zoom, hybrid zoom can retain more details and provide sharper images when zooming in.
