E1

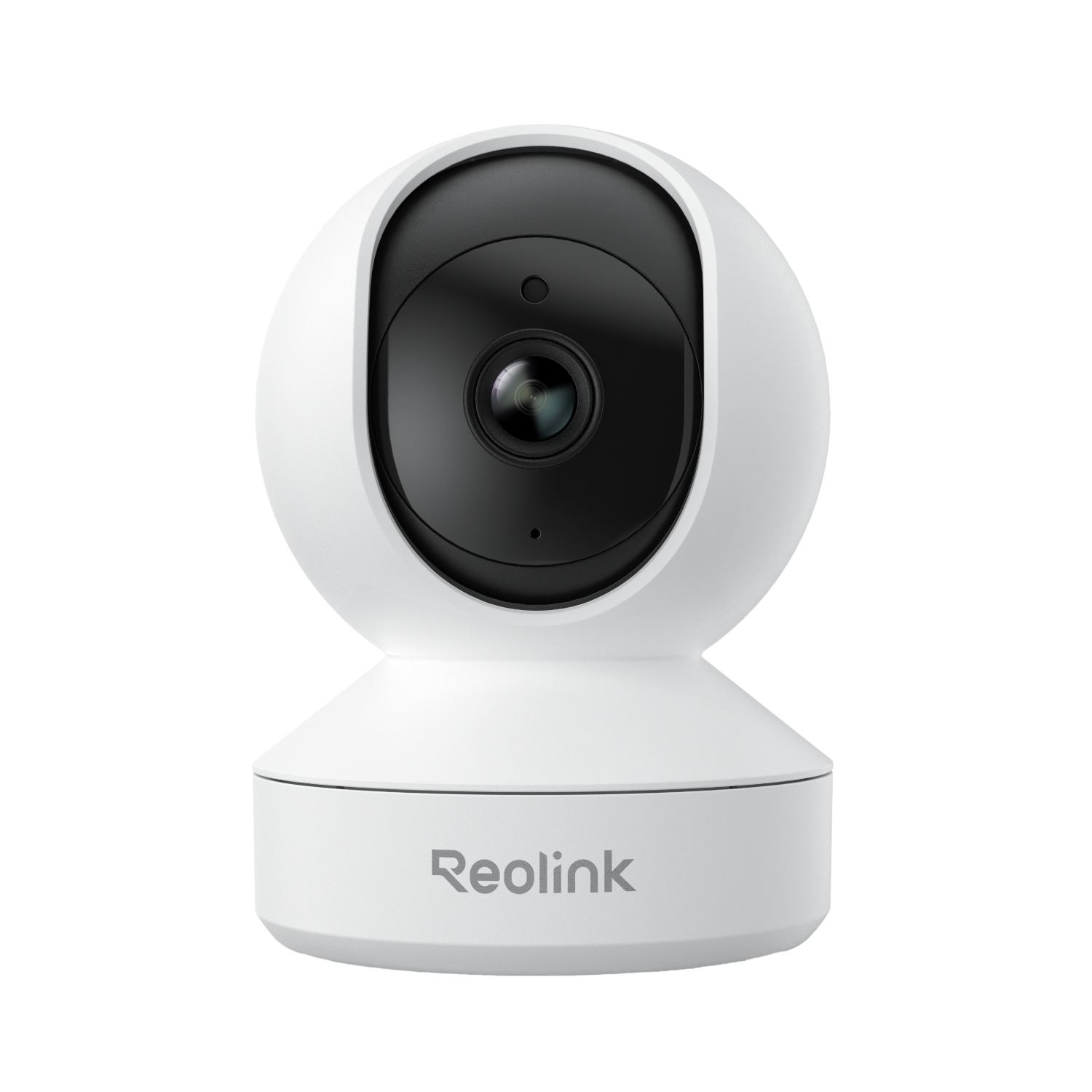

4MP PT Indoor Wi-Fi Security Camera

1 Camera (4MP, White, with Crying Detection)

Select Your Option

Feature Highlights

4MP Resolution

Watch your home in sharp clarity.

360° Coverage

Covers wider areas with 355° pan and 50° tilt.

Auto Tracking

Detects and follows the target, keeping it always in the frame.

2.4/5 GHz Wi-Fi

Offers a fast and stable network connection and data transmission.

Smart Detection

Accurate person/animal/vehicle detection captures what matters.

Local Storage

Supports up to a 512GB microSD card for secure local storage.

Specs

Download PDF
Image Sensor
1/3" CMOS Sensors
Resolution
2560x1440 (4 MP)@15FPS
Lens
f=4.0mm fixed, F=2.0
Field of View
Horizontal: 84°; Vertical: 45°
Infrared Night Vision
Up to 12 meters (40ft); LED: 8pcs/850nm (Auto-switching with IR-cut filter)
Frame Rate
Main Stream: 4fps - 20fps(default: 15fps)；Sub Stream: 4fps - 15fps(default: 10fps)
Code Rate
Main Stream: 2048Kbps -4096Kbps(default: 3072Kbps)；Sub Stream: 64Kbps -512Kbps(default: 256Kbps)
Audio
Two-way audio
DC Power
DC 5.0V⎓1A
Power Port
USB Type-C port
Reset Button
YES
Ethernet Port
N/A
SD Card Slot
Supports Max. 512GB microSD card
Audio In/Out
Built-in Microphone and Speaker
Wireless Standard
IEEE 802.11 ax/b/g/n
Operating Frequency
2.4GHz
Wireless Security
WPA/WPA2/WPA3
PT Angle(Max.)
Pan: 355°, Tilt: 50°
Browsers Supported
Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Protocols & Standards
SSL, TCP/IP, UDP, IPv4, UPnP, SMTP, NTP, DHCP, DNS, DDNS, P2P
User Access
Max. 20 users (1 admin & 19 user); Max. 12 simultaneous streams (2 main & 10 sub streams)
Smart Alarm
Motion detection/Human Detection/Pet Detection/Crying Detection
Record Mode
Motion-triggered recording (default); Scheduled recording, 24/7 recording
Smart Home Compatibility
Alexa, Google Assistant
Operating Temperature
-10°C~+40°C (14°F~104°F)
Operating Humidity
20% ~ 85%
Dimension
Ф73x106
Weight
158g
Limited Warranty
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/

Gallery

E1-gallery-0
1Daylight Sensor
2IR LED
3Lens
4Status LED
5Built-in Mic
6Reset Button
7microSD Card Slot

E1-gallery-1
1Speaker
2Power

What’s in the Box & Setup Guide (with Video)

  • E1 ×1
  • Mounting Plate ×1
  • Power Adapter ×1

FAQs

How-to Videos

How to Connect Your Reolink Camera to Amazon Alexa within Only 5 Mins

How to Set up Motion Detection via the Reolink App, Client, or NVR

How to Change the Login Password for Your Reolink Camera in Only 1 Min (English Version)

Learn More
Payment & Shipping
What are your payment options? And what currencies do you support?
You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details of Payment Policy.
How much are the customs duties?
Customs duties depend on where your items are shipped from and shipped to. See details in the Shipping Fees part of Shipping & Delivery Policy.
Where can you ship? How long will it take to receive my items?
We sell security cameras to the United States, Germany, the United Kingdom and other dozens of countries.
And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are shipped from and shipped to. See details of Shipping & Delivery Policy.
Functions
Can this camera be used outdoors/indoors?
This camera can only be used indoors; it's designed for indoor usage.
Do NOT install it outdoors (Even under an eave that is free from rain).
Can this camera support smart home like Google Assistant& Alexa?
Yes, this camera can work with Google Assistant & Alexa.
Tips: How to add this camera to Google Assistant? How to add this camera to Alexa?
How can I power up this camera?
The camera can be powered by a 5V 1A DC power adapter (A 3-meter one is shipped with the camera). You can check what is in the box at the end of the overview page.
What kind of microSD card can I use?
This camera supports up to 512GB microSD cards with FAT32 format and Class 10 read & write speed.
Can I connect the camera to my PoE NVR or PoE NVR system?
Yes, Reolink WiFi cameras can be connected to Reolink PoE NVR in an indirect way. You can follow these steps to connect them:
Step 1: Connect the camera to a wifi router via wifi signals or an ethernet cable, and it needs to be powered via a power adapter.
Step 2: Connect the NVR to the same router by a network cable.
The NVR will pick up all the cameras on the same network.
Does the camera support NAS?
No, the camera does not support NAS.
You can insert an SD card for it to save motion videos. This camera supports up to 256GB microSD cards with FAT32 format and Class 10 read & write speed.
Does the camera support cloud storage?
Yes. You can refer to Reolink Cloud to check it available countries.
Note: You can also save video clips into a microSD card (supports up to 256GB), or a Reolink NVR.
Does the camera work with my Reolink PoE NVR?
If you want to buy a new one: the currently on-sale NVRs work with all PoE and plug-in WiFi cameras.
If you already have one:
Please first refer to this article for its hardware version.
For the NVR with the hardware N7MB01, N6MB01, or N5MB01, it works with all PoE and plug-in WiFi cameras.
For the NVR with the hardware N2MB02, N3MB01, or H3MB18, it works with all PoE and plug-in WiFi cameras. But you can not have a full-resolution live view of the following cameras: RLC-1212A, RLC-1224A, Reolink Duo 2 PoE, Reolink Duo 2 WiFi, Reolink Duo Floodlight WiFi, Reolink Duo Floodlight PoE.
For the NVR with the rest hardwares such as H3MB17, H3MB02, and H3MB16, please refer to Introduction to Hardware Versions of Reolink NVRs for more detailed information.
