5MP Covers What Matters

Smart 360° Coverage

Multiple Storage Options

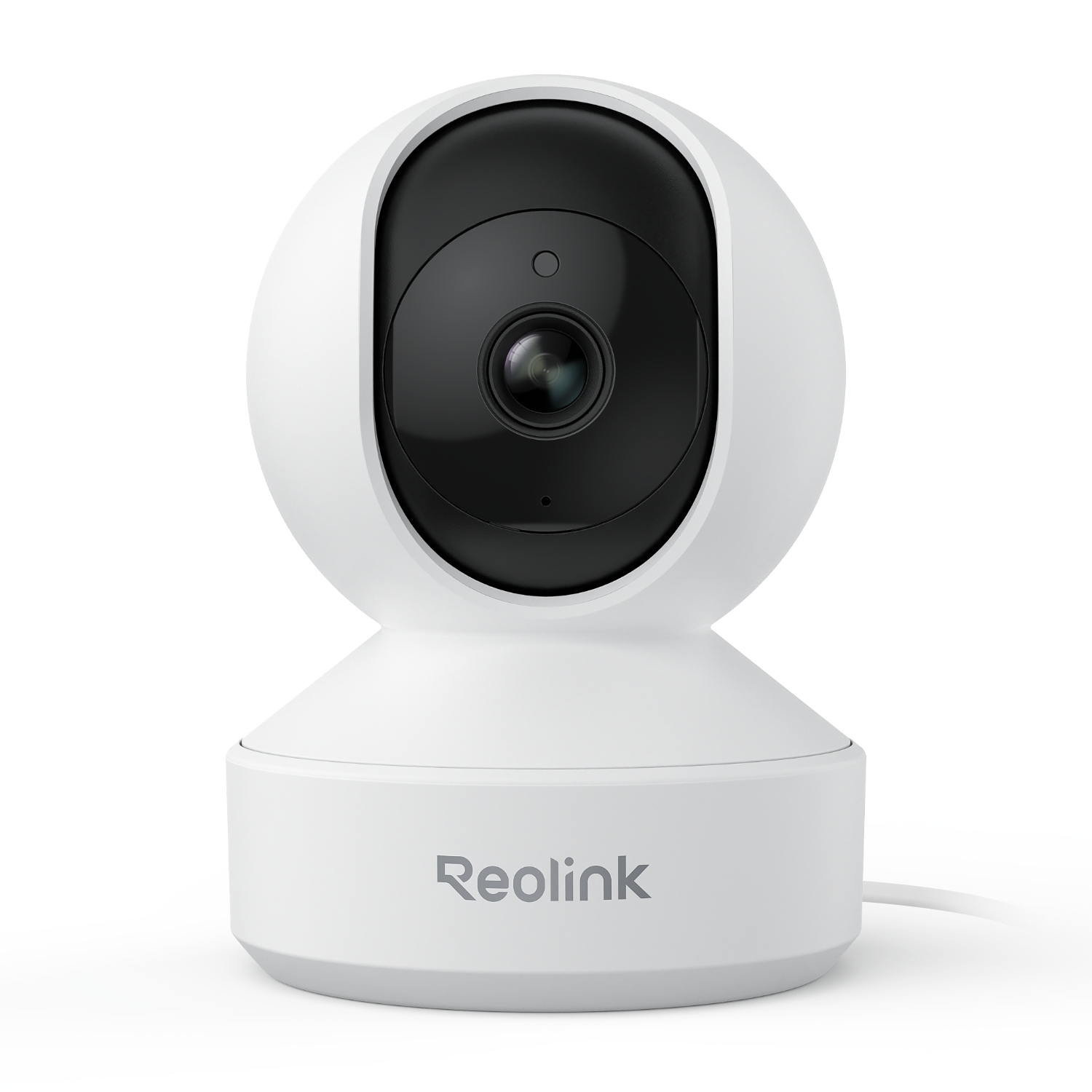

E1 Pro

Smart 5MP Wi-Fi PT Security Camera in White for Indoor Use

Smart 5MP Wi-Fi PT Security Camera in Black for Indoor Use

1 Camera (5MP, White, with Person/Pet Tracking)

Select Your Option

Feature Highlights

5MP Resolution

Delivers sharper, brighter images with 55% more detail than 3MP.

360° Coverage with Pan & Tilt

Pans 355° and tilts 50° to cover wider areas.

Auto Tracking

Detects and tracks. Always keeps what matters in the frame.

2.4/5 GHz Dual-Band Wi-Fi

Experience smooth 5MP live view with less latency.

Smart Detection

Detects a person/pet/vehicle, captures what matters.

Local Storage

Supports up to a 512GB microSD card for secure local storage.

Specs

Download PDF
Image Sensor
1/2.7" CMOS  Sensors
Resolution
2880x1616   (5 Megapixels)  @20fps
Lens
f=4.0mm fixed, F=1.6
Infrared Night Vision
Up to 12 meters (40ft); LED: 10pcs/850nm
(Auto-switching with IR-cut filter)
Frame Rate
Main Stream: 2fps - 20fps(default: 20fps)
Sub Stream: 4fps - 15fps(default: 10fps)
Code Rate
Main Stream: 2048Kbps -5120Kbps(default: 3072Kbps)
Sub Stream: 128Kbps -1024Kbps(default: 1024Kbps)
Audio
Two-way audio
DC Power
DC 5.0V⎓1A
Power Port
DC power port
Reset Button
YES
Ethernet Port
One 10M/100Mbps; RJ45
SD Card Slot
Supports Max. 512GB microSD card
Audio In/Out
Built-in Microphone and Speaker
Wireless Standard
IEEE 802.11 ac/a/b/g/n
Operating Frequency
2.4GHz/5GHz
Wireless Security
WPA/WPA2
PT Angle(Max.)
Pan: 355°, Tilt: 50°
Preset Points
Suppots 1 guard position & up to 64 preset positions
Power-off Memory Function
YES
Auto Tracking
YES (Only Pan)
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Protocols & Standards
SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
User Access
Max. 20 users (1 admin & 19 user);
Max. 12 simultaneous streams (2 main & 10 sub streams)
Smart Alarm
Motion detection/Human Detection/Pet Detection/Crying Detection
Recording Modes
Motion-triggered recording (default); Scheduled recording, 24/7 recording
Time Lapse
YES
Smart Home Compatibility
Google Assistant, Alexa
Privacy Mode
YES
Operating Temperature
-10°C~+55°C  (14°F~131°F)
Operating Humidity
20% ~ 85%
Dimensions
Φ84x118mm
Weight
235g
Limited Warranty
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/

Gallery

E1 Pro-gallery-0
1Daylight Sensor
28 IR LEDs
3Lens
4Status LED
5Built-In Mic
6Reset Button
7Micro SD Card Slot

E1 Pro-gallery-1
1LAN Port
2Speaker
3Power

What’s in the Box & Setup Guide (with Video)

    FAQs

    How-to Videos

    How to Set up & Install the Reolink E1 Pro

    How to Set up Motion Detection via the Reolink App, Client, or NVR

    How to Change the Login Password for Your Reolink Camera in Only 1 Min (English Version)

    Learn More
    Payment & Shipping
    What are your payment options? And what currencies do you support?
    You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details of Payment Policy.
    How much are the customs duties?
    Customs duties depend on where your items are shipped from and shipped to. See details in the Shipping Fees part of Shipping & Delivery Policy.
    Where can you ship? How long will it take to receive my items?
    We sell security cameras to the United States, Germany, the United Kingdom and other dozens of countries.
    And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are shipped from and shipped to. See details of Shipping & Delivery Policy.
    Functions
    How do I choose between a battery-powered model and a power-connected model? What are the differences?
    Power-connected models don't require frequent recharging, but please note that the total length of the power cable and the tail wire on the security camera is 19 feet.
    How can I power up this camera?
    The camera can be powered by a 5V 1A DC power adapter (A 3-meter power adaptor and a 4.5m extension cable are shipped with the camera). You can check what is in the box at the end of the overview page.
    Can this camera support Time-Lapse function?
    Yes, the camera can support time-lapse. It can save time-lapse photos and videos to the SD card.
    How to Set Up Time Lapse?
    Can this camera support smart home like Google Assistant?
    Yes, currently, this camera can work with Google Assistant & Alexa.
    Tips: How to add this camera to Google Assistant?
    What kind of microSD card can I use?
    This camera supports up to 512GB microSD cards with FAT32 format and Class 10 read & write speed.
    Does the camera support Two-Way Audio?
    Yes, the camera supports two-way audio via its built-in mic and speaker. You can not only capture videos with audio recorded but also have real-time communication with people on the camera's end through Reolink App or Client.
    Can this camera work with Reolink NVR or Reolink Home Hub Series?
    Yes, this camera can work with all currently available PoE NVRs and Wi-Fi NVRs, supporting 24/7 continuous recording. It is also compatible with Reolink Home Hub and Home Hub Pro.
    Does this camera support Smart Detection?
    Yes, this camera supports person/pet/crying detection.
    Does this camera support Auto Tracking? What is it used for?
    Yes, This camera will automatically follow detected objects. You can also control the camera to manually pan and tilt via the Reolink App/Client. Effortlessly track family members, monitor pets, and keep an eye on unwanted visitors.
    What is Privacy Mode? What is it used for?
    Privacy Mode is a unique new feature of the E1 indoor series. It provides a convenient way to disable preview, alarms, audio recording, and video recording without unplugging the camera. When you don't want to be monitored by the camera, you can enable Privacy Mode.
