Lumus
Overview
Specs
Accessories
Review
Comparison
FAQs

4MP Detail Day & Night

Smart Detection, Instant Alerts

Multiple Storage Options

Lumus

2K Smart Wi-Fi Camera with Color Night Vision and 2.4/5 GHz Wi-Fi

1 Camera (4MP, White)

Select Your Option

Feature Highlights

4MP Resolution

Delivers crisp, clear 4MP footage with vivid colors, even in low light.

Dual-Band Wi-Fi

2.4/5 GHz Wi-Fi offers a fast and stable network connection and data transmission,

Smart Detection

Accurate person/animal/vehicle detection captures what matters.

Instant Alerts

Triggers lighting and siren upon alarms and sends instant notification to your phone.

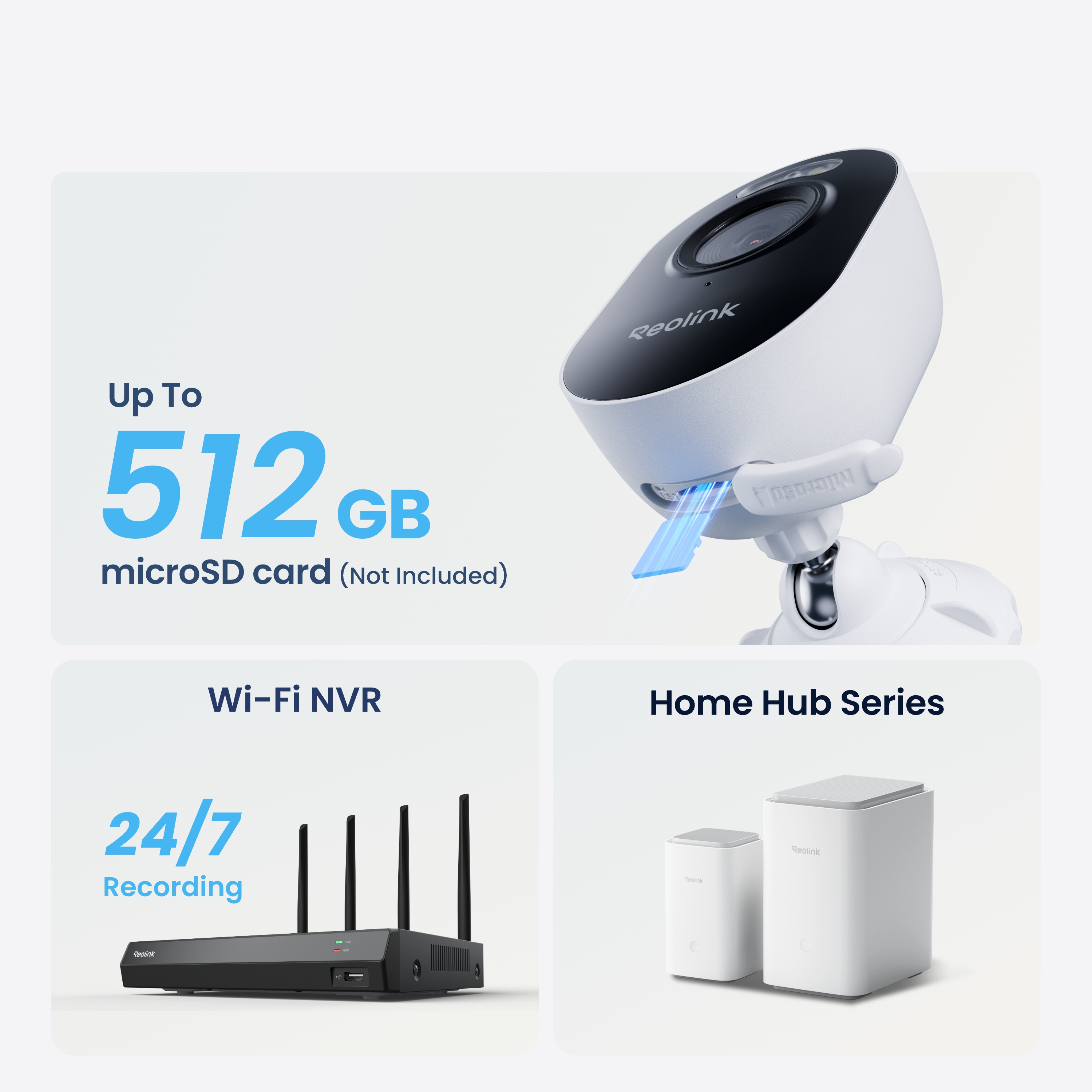

Local Storage

Supports up to a 512GB microSD card for secure local storage.

Remote Access

View in real time via a phone or PC. Share access permission with up to 19 users.

Specs

Download PDF
Image Sensor
1/2.7" CMOS Sensor
Resolution
2560 x 1440 (4.0 Megapixels) @15fps
Lens
f=2.8mm, F=2, with IR Cut
Video Compression
H.264
Field of View
Horizontal: 107°
Vertical: 57°
Diagonal: 129°
Infrared Night Vision
Up to 10m (33ft) (LED: 6pcs/0.8W/850nm)
(Auto-switching with IR-cut filter)
Color Night Vision
With spotlights: 2pcs/1.6W/6500K
Frame Rate
Main stream: 2fps - 15fps (default: 15fps)
Sub stream: 4fps - 15fps (default: 10fps)
Code Rate
Main stream: 1024Kbps - 3072Kbps (default: 3072Kbps)
Sub stream: 64Kbps - 512Kbps (default: 256Kbps)
Audio
Two-way audio
DC Power
DC 5.0V⎓1A, <5W
Power Port
DC power port
SD Card Slot
Supports Max. 512GB microSD card
Reset Button
YES
Audio In/Out
Built-in microphone and speaker
Wireless Standard
IEEE 802.11 a/b/g/n
Operating Frequency
2.4GHz/5GHz
Wireless Security
WPA/WPA2
Browsers Supported
No
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Protocols & Standards
SSL, TCP/IP, UDP, UPNP, SMTP, NTP, DHCP, DNS, DDNS, P2P
User Access
Max.20 users (1 admin & 19 users); Max.12 simultaneous streams (2 main & 10 sub streams)
Smart Alarm
Motion detection; person detection; vehicle detection; animal detection
Recording Modes
Motion-triggered recording (default); Scheduled recording; 24/7 recording
Time Lapse
YES
Smart Home Compatibility
Google Assistant; Alexa
Temperature
Operating Temperature: -10°C ~ 55°C
Humidity
Operating Humidity: 20% ~ 85%
Weatherproof
IP65
Dimensions
99 x 91 x 60mm
Weight
168g
Limited Warranty
2-year limited warranty. For support, visit https: //support.reolink.com/hc/en-us/

Gallery

Lumus-gallery-0
1Status LED
2Spotlight
3Lens
4Daylight Sensor
5IR LEDs
6Built-in Mic

Lumus-gallery-1
1Speaker
2Bracket
3Reset Button
4microSD Card Slot

What’s in the Box & Setup Guide (with Video)

  • Reolink Lumus ×1
  • Bracket ×1
  • Power Adapter ×1

FAQs

How-to Videos

How to Connect Your Reolink Camera to Amazon Alexa within Only 5 Mins

How to Find Your IP Camera Address & Set up Remote Viewing

How to Set up Motion Detection via the Reolink App, Client, or NVR

Learn More
Payment & Shipping
What are your payment options? And what currencies do you support?
You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details of Payment Policy.
How much are the customs duties?
Customs duties depend on where your items are shipped from and shipped to. See details in the Shipping Fees part of Shipping & Delivery Policy.
Where can you ship? How long will it take to receive my items?
We sell security cameras to the United States, Germany, the United Kingdom and other dozens of countries.
And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are shipped from and shipped to. See details of Shipping & Delivery Policy.
Functions
Can this camera be used outdoors/indoors?
This camera can be used both indoors and outdoors.
It is IP65 certified weatherproof and its operating temperature is from -10°C to 55°C (14°F to 131°F), ideal for outdoor and indoor usage.
Can this camera support smart home like Google Assistant?
Yes, currently, this camera can work with Google Assistant.
Tips: How to add this camera to Google Assistant?
How can I power up this camera?
The camera can be powered by a 5V 2A DC power adapter (A 1.5m one is shipped with the camera). You can check what is in the box at the end of the overview page.
The camera itself also has a 3m tail cable attached.
What kind of microSD card can I use?
This camera supports up to 256GB microSD cards with FAT32 format and Class 10 read & write speed.
Does this camera support person/vehicle/animal detection?
Yes, this camera supports person/vehicle/animal detection.
Can I connect this camera to my PoE NVR or PoE NVR system?
Yes, Reolink Wi-Fi cameras can be connected to Reolink PoE NVR in an indirect way. You can follow these steps to connect them:
Step 1. Connect the camera to a Wi-Fi router via Wi-Fi signals, and it needs to be powered via a power adapter.
Step 2. Connect the NVR to the same router by a network cable.
The NVR will pick up all the cameras on the same network.
Can I turn off the spotlights?
Yes, you can turn off the spotlights manually.
By default, the camera's spotlights are motion activated: it will turn on automatically when a motion is detected. You can turn them off or adjust the brightness to your liking.
Please note that with the spotlights on you can enjoy clear color night vision, but if the spotlights are turned off, you will only see black and white images at night.
Does this camera support NAS?
No, the camera does not support NAS.
You can insert an SD card for it to save motion videos. This camera supports up to 256GB microSD cards with FAT32 format and Class 10 read & write speed.
Does this camera support cloud storage?
Reolink Cloud is available in some countries and regions. You can refer to Reolink Cloud to check its available countries and regions.
Note: You can also save video clips into a microSD card (supports up to 256GB), or a Reolink NVR.
