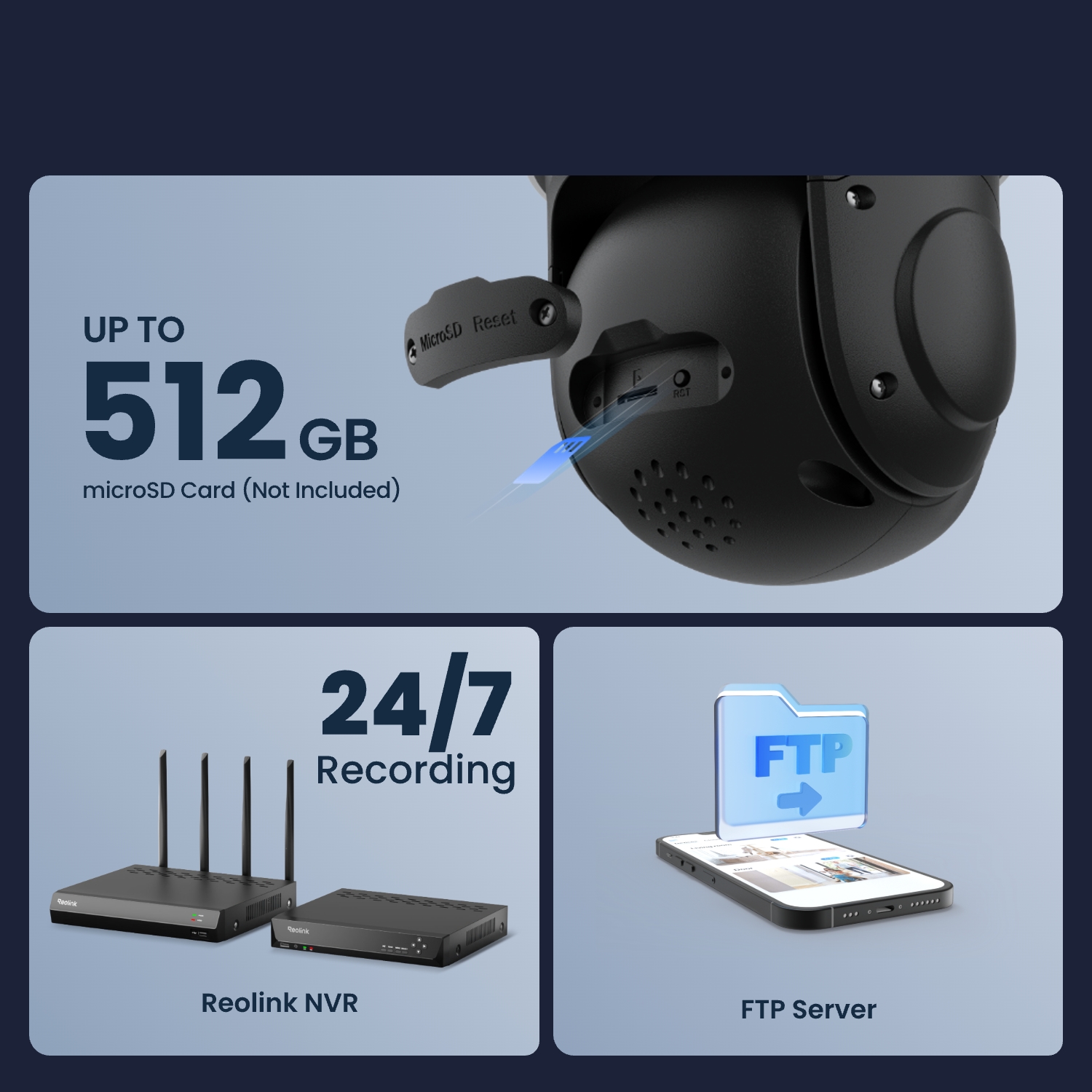

Multiple Storage Options

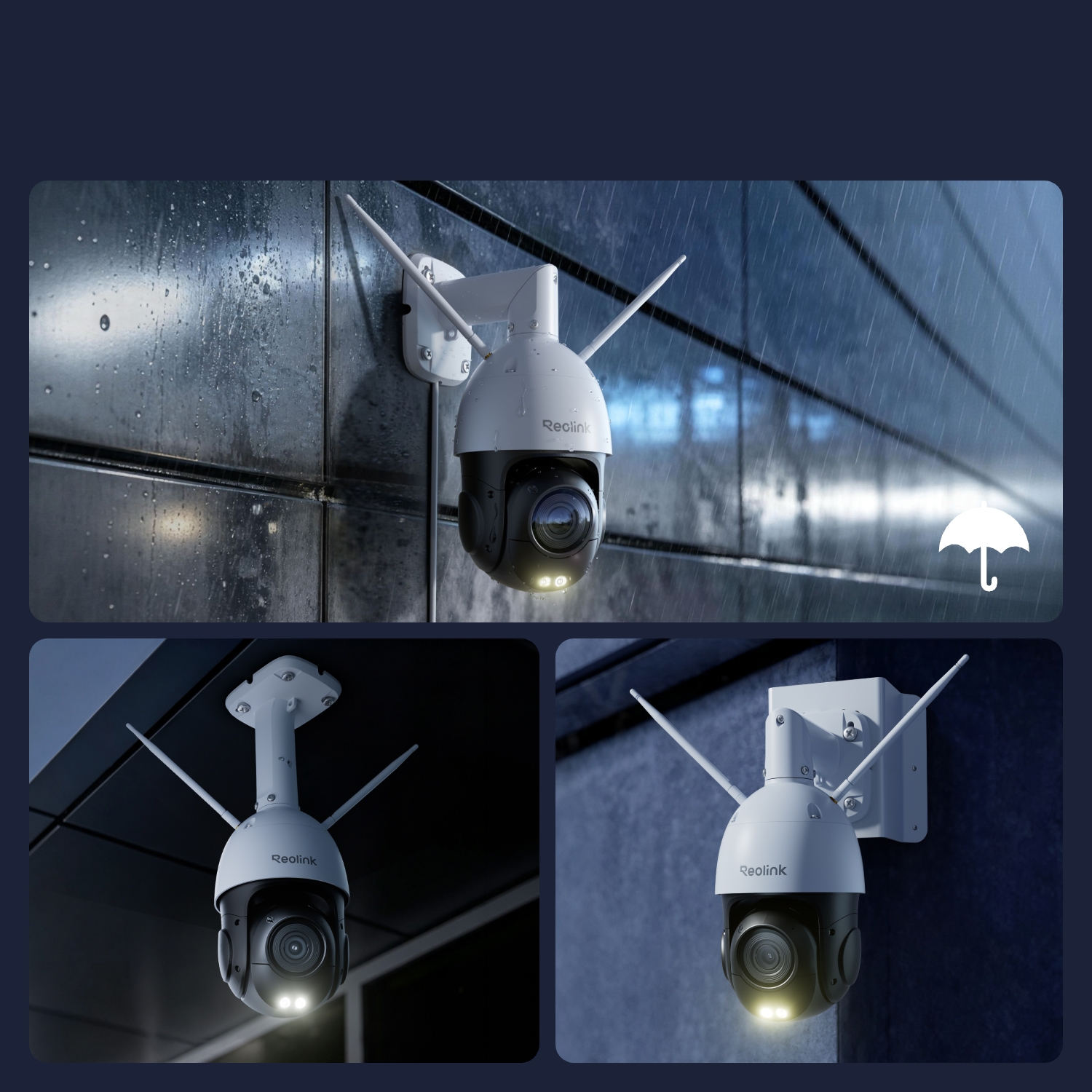

Flexible Installation Accessible

RLC-823S1W

4K 360° PTZ Dual-Band Wi-Fi 6 Security Camera

  • 4K 8MP UHD with 5X Optical Zoom
  • 360° Coverage with Auto-Tracking
  • Person/Vehicle/Animal Detection
  • 2.4/5 GHz Dual-Band Wi-Fi 6

Feature Highlights

4K 8MP @20 FPS

3840×2160 resolution delivers sharp, clear views.

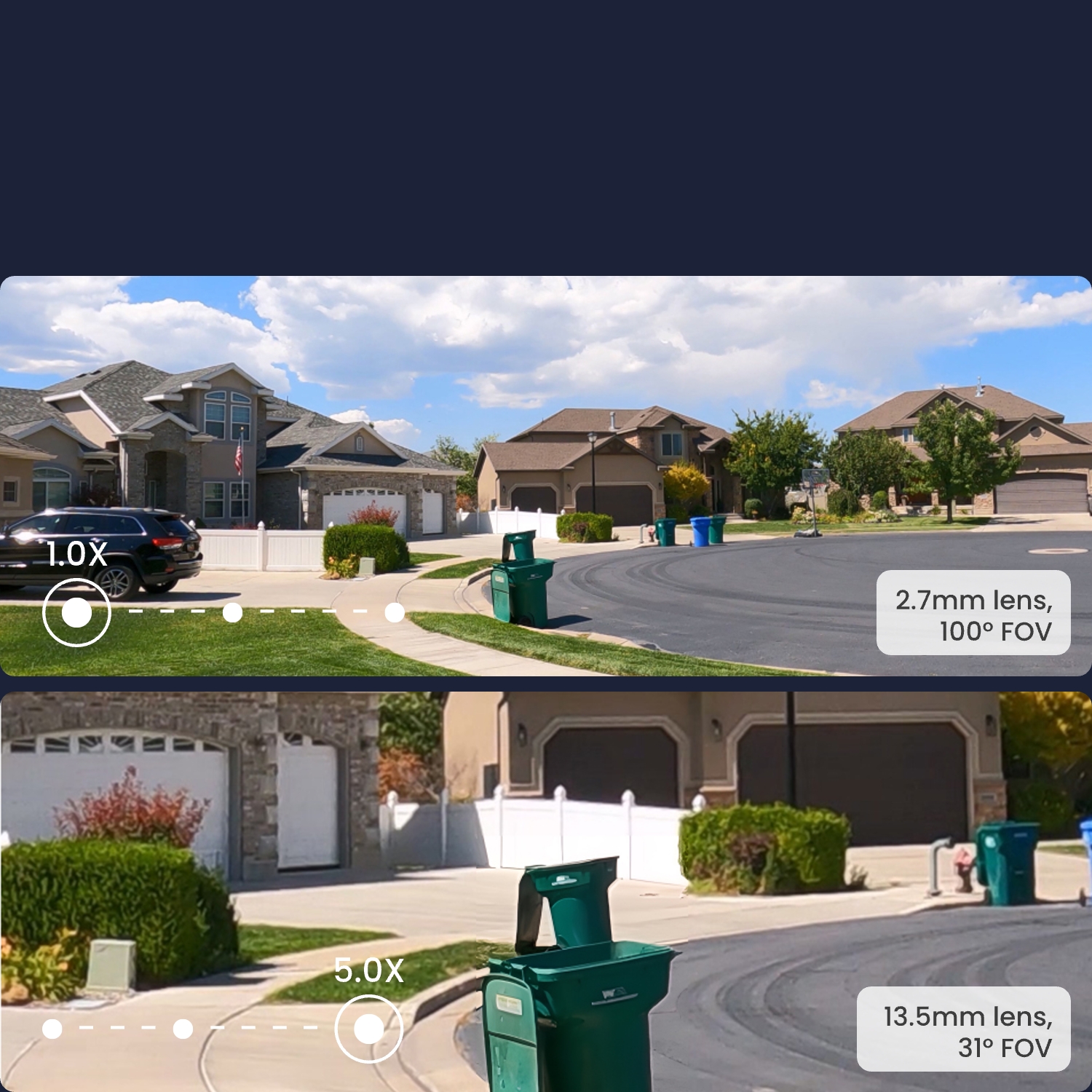

5× Optical Zoom

See finer details without compromising image quality.

360° Auto Tracking

Pans 360° and tilts 50° to keep the target always in the frame.

Dual-Band Wi-Fi 6

2.4/5 GHz offers stable and fast data transmission.

Color Night Vision

Break through the black & white vision; See true-to-life images in color.

Protocols & Standards

ONVIF, RTSP, RTMP, FTP, HTTPS, HTTP supported.

Specs

Download PDF
Image Sensor
1/2.8" CMOS sensor
Resolution
3840x2160 (8 megapixels) @20fps
Lens
f=2.7-13.5mm, Max: F1.6
Video Compression
H.264/H.265
Zoom
5X optical zoom
Field of View
Horizontal: 100°- 31°
Vertical: 55°- 17°
Infrared Night Vision
Up to 60 meters (190ft); LED: 7pcs/MAX 5.5W/850nm (Auto-switching with IR-cut filter)
Color Night Vision
With spotlights: 2pcs/4W/4000K
Frame Rate
Main stream: 2fps - 20fps (default: 20fps)
Sub stream: 4fps - 15fps (default: 10fps)
Code Rate
Main stream: 2048Kbps - 5120Kbps (default: 4096Kbps)
Sub stream: 64Kbps - 512Kbps (default: 256Kbps)
Audio
Two-way audio
DC Power
DC 12.0V⎓2A, <24W
Power Port
DC power port
Ethernet Port
One 10M/100Mbps; RJ45
SD Card Slot
Supports Max. 512GB microSD card
Reset Button
YES
Audio In/Out
Built-in microphone and speaker
Wireless Standard
IEEE 802.11 ac/ax/a/b/g/n
Operating Frequency
2.4GHz/5GHz
Wireless Security
WPA-PSK/WPA2-PSK/WPA3-SAE
PT Angle(Max.)
Pan: 360°, Tilt: 90°
Pan Speed
1.4°-180°/s (configurable)
Tilt Speed
1.4°-56°/s (configurable)
Preset Points
Suppots 1 guard position & up to 64 preset positions
Patrol
Supports 1 patrol; up to 16 presets per patrol
Power-off Memory Function
YES
Auto Tracking
YES
Browsers Supported
Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Protocols & Standards
HTTPS, SSL, TCP/IP, UDP, HTTP,IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
User Access
Max. 20 users (1 admin & 19 users);
Max. 12 simultaneous streams (2 main & 10 sub streams)
Smart Alarm
Motion detection; person detection; vehicle detection; animal detection
Recording Modes
Motion-triggered recording (default); Scheduled recording, 24/7 recording
Time Lapse
YES
Smart Home Compatibility
Google Assistant
Operating Temperature
-10°C~50°C (14°F~126°F)
Operating Humidity
10% ~ 90%
Weatherproof
IP66
Dimensions
373*177*140mm (Ceiling Mount)
Weight Battery Included
2.34kg
Limited Warranty
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/.

Gallery

RLC-823S1W-gallery-0
1Bracket
2Antenna
3Daylight Sensor
4Lens
5IR LEDs
6Spotlight
7Reset Button
8microSD Card Slot
9Speaker

RLC-823S1W-gallery-1

RLC-823S1W-gallery-2

RLC-823S1W-gallery-3
1Power Port
2Network Port
3Waterproof Lid

What’s in the Box & Setup Guide (with Video)

  • RLC-823S1W ×1
  • Power Adapter ×1
  • 1m Network Cable ×1
  • 4.5m Power Extension Cable ×1
  • Wire Rope Anchor ×1

FAQs

Payment & Shipping
What are your payment options? And what currencies do you support?
You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details of Payment Policy.
How much are the customs duties?
Customs duties depend on where your items are shipped from and shipped to. See details in the Shipping Fees part of Shipping & Delivery Policy.
Where can you ship? How long will it take to receive my items?
We sell security cameras to the United States, Germany, the United Kingdom and other dozens of countries.
And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are shipped from and shipped to. See details of Shipping & Delivery Policy.
Functions
Does the camera work with my Reolink PoE NVR?
If you want to buy a new one: the currently on-sale NVRs work with all PoE and plug-in WiFi cameras.
If you already have one:
Please first refer to this article for its hardware version.
For the NVR with the hardware N7MB01, N6MB01, or N5MB01, it works with all PoE and plug-in WiFi cameras.
For the NVR with the hardware N2MB02, N3MB01, or H3MB18, it works with all PoE and plug-in WiFi cameras. But you can not have a full-resolution live view of the following cameras: RLC-1212A, RLC-1224A, Reolink Duo 2 PoE, Reolink Duo 2 WiFi, Reolink Duo Floodlight WiFi, Reolink Duo Floodlight PoE.
For the NVR with the rest hardware such as H3MB17, H3MB02, and H3MB16, please refer to Introduction to Hardware Versions of Reolink NVRs for more detailed information.
What is WiFi 6? What are its benefits？
WiFi 6 (802.11ax Protocol) is the newest standard of WiFi technology, known for its faster and more stable wireless connectivity with reduced network latency. It also applied advanced encryption protocol WPA3 to enhance the security of wireless network.
Can this camera connect to non-WiFi 6 routers?
Yes, this camera can connect to non-WiFi 6 routers, but a WiFi 6 router is better recommended for enhanced networking.
Why can't I connect it to 3rd party softwares?
The RTSP and other ports may be disabled by default. You can launch Reolink Client, then go to Device Settings >> Network >> Advanced >> Port Settings to make sure all ports are enabled before using 3rd party softwares.
Can this camera support time-lapse function?
Yes, the camera can support time-lapse. It can save time-lapse photos and videos to the SD card.
How to Set Up Time Lapse?
Does this camera support person/vehicle detection?
Yes, this camera supports person/vehicle detection. It also supports animal detection.
Can this camera be used outdoors/indoors?
This camera can be used both indoors and outdoors.
It is IP66 certified weatherproof and its operating temperature is from -10°C to 55°C (14°F to 131°F), perfect for outdoor and indoor usage.
Can this camera support smart home like Google Assistant?
Yes, currently, this camera can work with Google Assistant.
Tips: How to add this camera to Google Assistant?
How can I power up this camera?
The camera can be powered by a 12V 1A DC power adapter (A 1.2-meter power adaptor and a 4.5m extension cable are shipped with the camera). You can check what is in the box at the end of the overview page.
What kind of microSD card can I use?
This camera supports up to 256GB microSD cards with FAT32 format and Class 10 read & write speed.
Can I connect the camera to my PoE NVR or PoE NVR system?
Yes, Reolink WiFi cameras can be connected to Reolink PoE NVR in an indirect way. You can follow these steps to connect them:
Step 1: Connect the camera to a wifi router via wifi signals or an ethernet cable, and it needs to be powered via a power adapter.
Step 2: Connect the NVR to the same router by a network cable.
The NVR will pick up all the cameras on the same network.
Can I turn off the spotlights?
Yes, you can turn off the spotlights manually.
By default, the camera's spotlights are motion activated: it will turn on automatically when a motion is detected. You can turn them off or adjust the brightness to your liking.
Please note that with the spotlights on you can enjoy clear color night vision, but if the spotlights are turned off, you will only see black and white images at night.
Does the camera support NAS?
Yes, the camera supports NAS.
You may want to know How to have Reolink cameras record to my NAS.
What is 3D Zoom? How can I use this function?
3D Zoom is a function that enables the camera to automatically pan, tilt, and zoom in on the specific area that you selected on the screen, without the need for manual control step by step.
