RLK16-833D8-A

4K 3X Optical Zoom Smart PoE Security Camera System with 4TB HDD & 16CH NVR for 24/7 Recording

  • 4K UHD & 3X Optical Zoom
  • Color Night Vision
  • 4TB HDD 16-Channel NVR

Feature Highlights

4K 8MP Ultra HD

Remote access to clear live view.

3X Optical Zoom

Zoom in without compromising image quality.

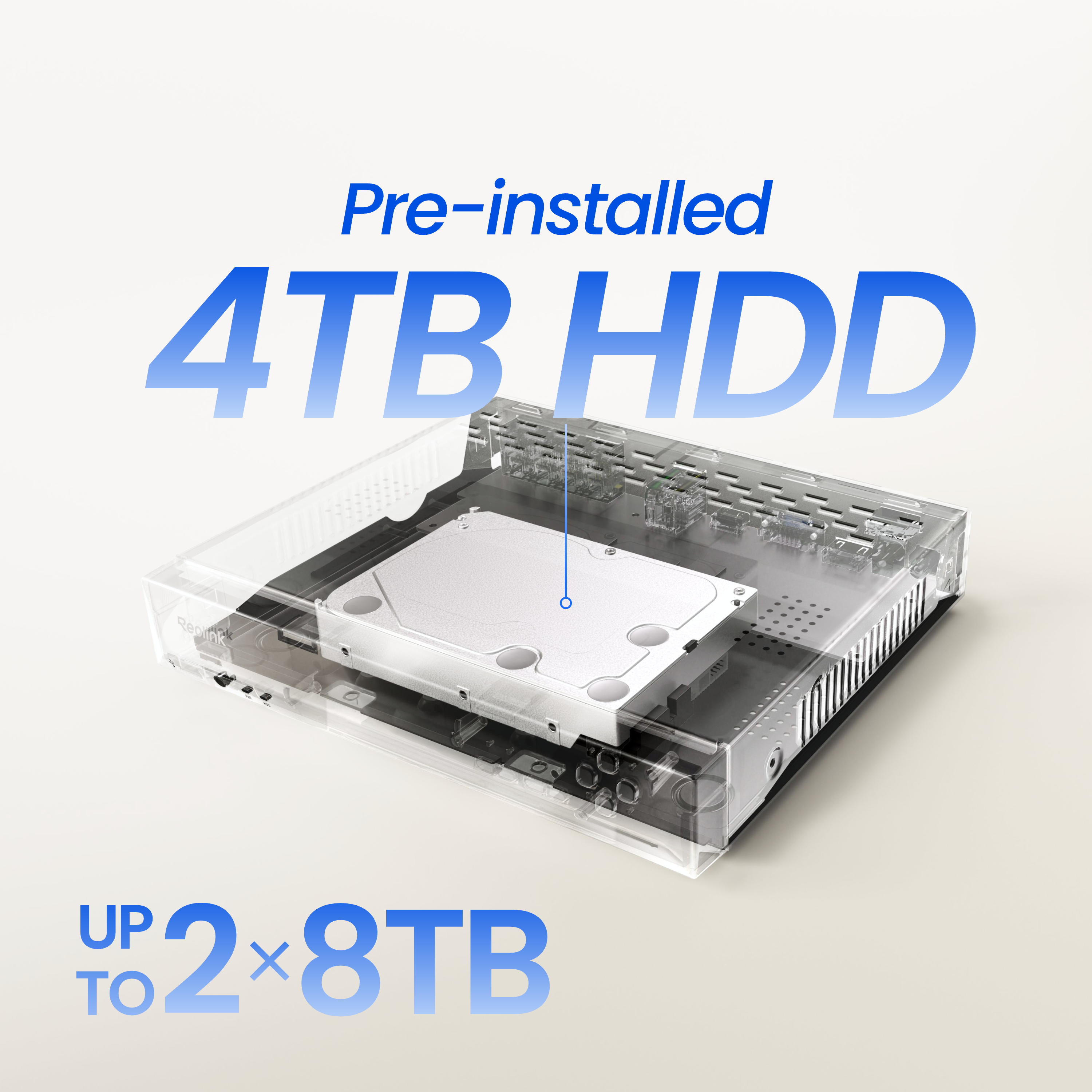

Large Local Storage

Built-in 4TB HDD, expandable up to 16TB HDD (2×8TB HDD)

Smart Detection

Person/vehicle/pet detection

Color Night Vision

4.7W/6500K/700 lumens for each camera.

25 FPS Frame Rate

Ensures smooth, flowing video feed.

Specs

RLN16-410
RLC-833A
Download PDF
Hardware
N6MB01
IP Video Input
Up to 24 IP cameras (max.16 wired cameras)
Audio Input
Cameras with built-in mic
Video Output
VGA, HDMI
Display Resolution
•HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768;
•VGA: 1920*1080, 1280*1024, 1280*720, 1024*768
Audio Output
1-channel, RCA
Live View/Playback Resolution
7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p
Video Format
H.265, H.264
Synchronous Playback
Up to 4 channels
SATA
2 x SATA interface (1 × 4TB HDD included)
Capacity
Up to 16TB (max. 8TB capacity for each HDD)
External HDD
No
USB Interface
2 × USB 2.0
Network Interface
•1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN;
•16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera
Max. Power Per Port
25W
Supported Standard
IEEE 802.3 af/at
Network Protocol
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Browser Supported
Firefox, Chrome, Edge, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Max. User Access
20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Power Supply
DC 48V~54V
Power Consumption
<10W (without HDD & PoE)
Working Environment
•Temperature: -10°C~+45°C (14°F~113°F);
•Humidity: 10%~90%
Dimensions
330 × 45 × 285mm
Weight
2.4kg
Limited Warranty
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/.

Gallery

RLK16-833D8-A-gallery-0
1Mount
2Metal Aluminum Case
3Spotlight
4IR LEDs
5High Definition Lens
6Daylight Sensor
7Built-in Mic
8Speaker

RLK16-833D8-A-gallery-1

Manual rotation only.

RLK16-833D8-A-gallery-2
1Power
2Reset Button
3Network

RLK16-833D8-A-gallery-3
1USB Port
2Power LED/HDD LED
3Control Panel

RLK16-833D8-A-gallery-4
1On/Off Switch
2RJ45
3Power Input
4Audio Out
5USB Port
6HDMI Port
7VGA Port
8Network

What’s in the Box & Setup Guide (with Video)

  • RLN16-410 ×1
  • RLC-833A ×8
  • NVR Power Adapter ×1
  • HDMI Cable ×1
  • USB Mouse ×1
  • 1m Network Cable ×8
  • 18m Network Cable (except for the bundles without 18m cables) ×8

FAQs

How-to Videos

How to Set up the Reolink PoE Camera System (3 Mins)

How to Reset Your Reolink NVR in 5 Quick Ways

How to Set up Motion Detection via the Reolink App, Client, or NVR

Learn More
Payment & Shipping
What are your payment options? And what currencies do you support?
You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details of Payment Policy.
How much are the customs duties?
Customs duties depend on where your items are shipped from and shipped to. See details in the Shipping Fees part of Shipping & Delivery Policy.
Where can you ship? How long will it take to receive my items?
We sell security cameras to the United States, Germany, the United Kingdom and other dozens of countries.
And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are shipped from and shipped to. See details of Shipping & Delivery Policy.
Functions
Does the NVR support the person/vehicle detection of my Reolink cameras?
Yes, the NVR in RLK16-833D8-A supports the cameras' smart person/vehicle detection.

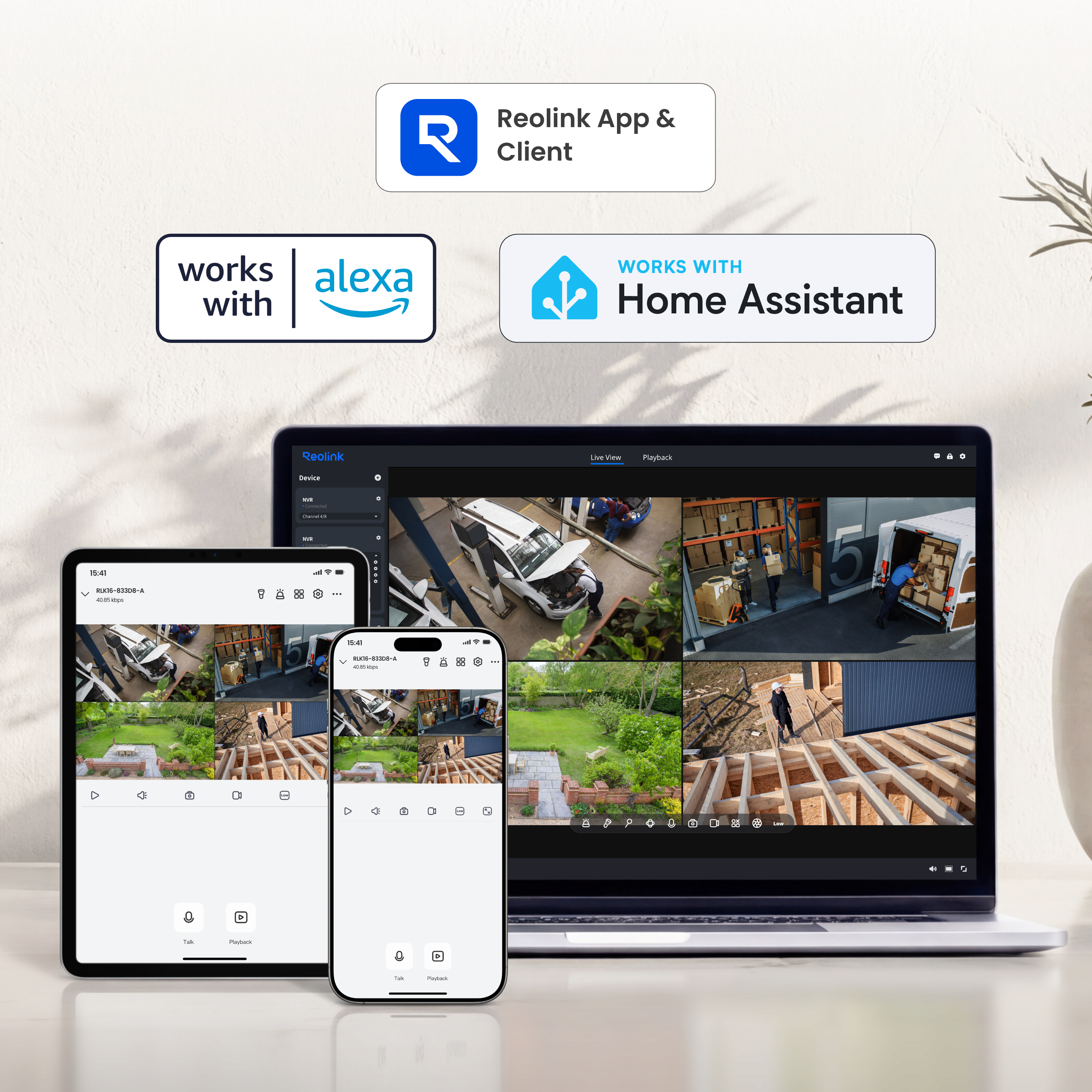

How can I pre-view or play back the video?
Method 1: Connect the NVR to a monitor or TV for preview or playback;
Method 2: Download FREE Reolink APP or Client, add the NVR to the APP or Client, configure the settings, and then you can preview or play back the videos.
Can I connect Reolink NVR to one or more displayers?
You can connect maximum two displayers with the NVR via HDMI or VGA (See the diagram below).
Connect Reolink NVR to Displayers
Cameras connected to the NVR will be shown on the displayer(s).
What is the difference if I buy cameras and NVR separately instead of buying a whole system?
The cameras in the kit cannot work alone. They have to work with the Reolink PoE NVR. If you buy standalone cameras and the NVR separately, the cameras can work alone.
Also, the network cables for cameras in the kit are 18m long while those for standalone cameras are 1m long.
What ethernet cable can I use? What is the maximum distance between the camera and NVR?
We have included 8 18M ethernet cables for the 8 cameras included in the kit. You can change them to longer ones if needed.
Reolink PoE cameras support CAT5, CAT5E, CAT6, CAT7 with 8 PIN Ethernet cables. The maximum length of the network cable they support is 330ft (100m). Please note that the data is obtained with a standard CAT5E Ethernet cable under specific test conditions and actual use may vary.
How long does the security camera systems store video footage?
The length of time to store video footage is closely related to the video code rate.
As for RLK16-833D8-A, the default bit rate of its cameras is 6144 kbps. Proximately, with the 8 cameras all working, this security system can store video footage for 8 days to its pre-installed 4TB HDD.
You can refer to "How Long Can Reolink NVR Record?"for more details.
If you want to keep longer video storage, you can expand the NVR's storage capacity.
Does my security system work with Google Assistant?
Sorry, the NVR system cannot work with Google Assistant.
How to use the two-way audio?
Currently, the two-way audio is only available via Reolink App & Client. Go to the camera live view interface on Reolink App or Client and click/tap the microphone button to have two-way talk. You can refer to the detailed tutorial on how to use the two-way audio.
Can I turn off the spotlights and siren?
Yes, you can turn off the spotlights and siren manually.
By default, the camera's spotlights and siren are motion activated: they will be turned on automatically when a motion is detected. You can turn them off, adjust the brightness of spotlights, or customize the siren to your liking.
Please note that with the spotlights on you can enjoy clear color night vision, but if the spotlights are turned off, you will only see black and white images at night.
