RLK8-800V4

4K 125° IK10 Vandal-Proof PoE Security System

  • 4K UHD with Spotlight Night Vision
  • 125° Super-Wide Viewing Angle
  • IK10 Vandal-Proof
  • 8-Channel NVR with 2TB HDD

Feature Highlights

Ultra-High Definition

Delivers a clear, smooth 4K 8MP view at 20 FPS.

Smart Detection

Accurate person/animal/vehicle detection captures what matters.

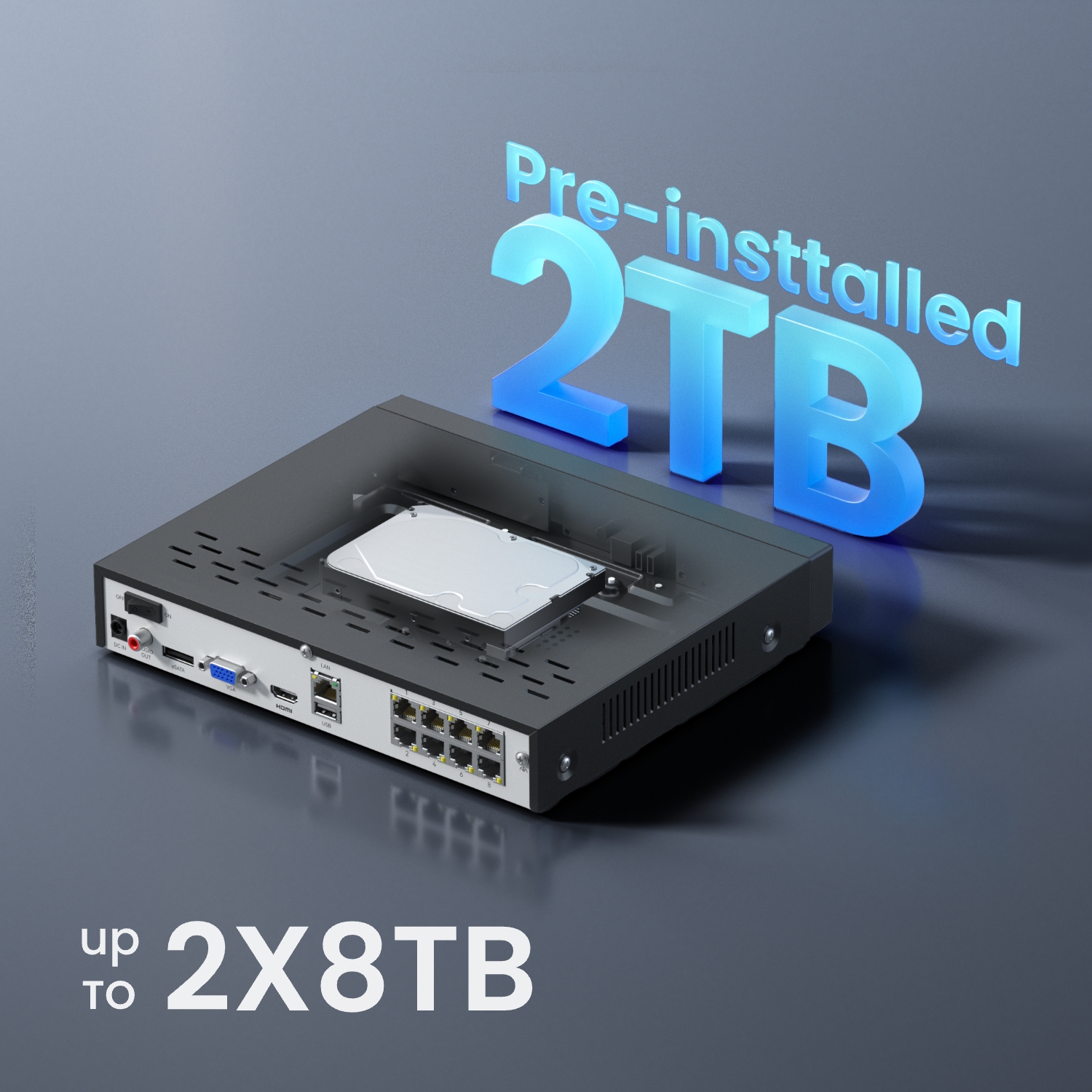

Up to 16TB Storage

Comes with a 2TB HDD, expandable to 16TB (8TB via SATA and 8TB via eSATA).

Spotlight Night Vision

Off/Night Smart Mode/ Timer Mode.

Enhanced Performance

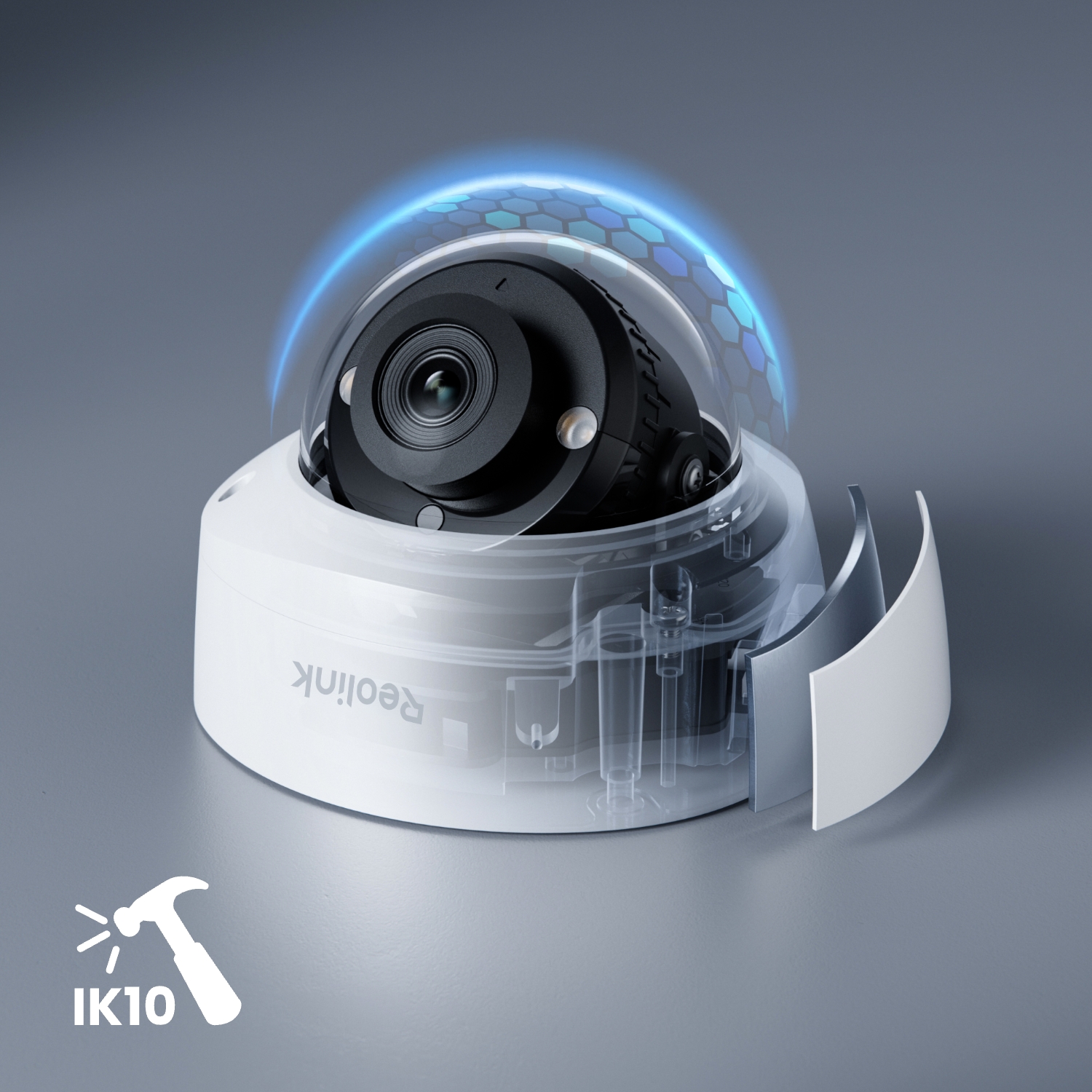

IK10 vandal-proof and IP67 weatherproof protection.

24/7 Recording

Offers continuous protection without interruption.

Specs

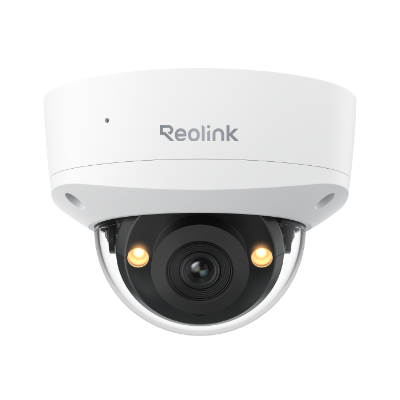

V800
RLN8-410
Download PDF
Image Sensor
1/2.49" CMOS sensor
Resolution
3840×2160(8 Megapixels)@20FPS
Lens
f=2.8mm F2.0
Video Compression
H.265 (more than 5MP); H.264 (others)
Field of View
Horizontal: 105°
Vertical: 56°
Diagonal: 125°
Infrared Night Vision
Up tp 30 meters(100ft); LED: 2pcs/2W/850nm
(auto-switching with IR-cut filter)
Color Night Vision
With spotlights: 2pcs/3W/3000K (adjustable)
Frame Rate
Main stream: 2fps - 20fps (default: 20fps)
Sub stream: 4fps - 15fps (default: 10fps)
Code Rate
Main stream: 1024Kbps - 8192Kbps (default: 6144Kbps)
Sub stream: 64Kbps - 512Kbps (default: 256Kbps)
Audio
Two-way audio
PoE
IEEE 802.3af, 48V, active
DC Power
DC 12.0V⎓1A, <12W
Power Port
DC power port
Ethernet Port
One 10M/100Mbps; RJ45
Reset Button
YES
Audio In/Out
Built-in microphone and speaker
Smart Alarm
Motion detection; person detection; vehicle detection; animal detection
Recording Modes
Motion-triggered recording (default); scheduled recording; 24/7 recording
Operating Temperature
-10°C to 55°C (14°F to 131°F)
Operating Humidity
10% to 90%
Weatherproof
IP67
Dimensions
Φ117 × 86mm
Weight
604g
Limited Warranty
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/.

Gallery

RLK8-800V4-gallery-0
1Microphone
2Metal Housing
3Spotlight
4Lens
5IR LED
6Daylight Sensor

RLK8-800V4-gallery-1
1Power Port
2Ethernet Port
3Waterproof Lid

RLK8-800V4-gallery-2
1USB Port
2Power LED & HDD LED
3Control Panel

RLK8-800V4-gallery-3
1On/Off Switch
2Network
3RJ45
4Power Input
5Audio Out
6eSATA Port
7VGA Port
8HDMI Port
9USB Port

What’s in the Box & Setup Guide (with Video)

  • V800 ×4
  • RLN8-410 ×1
  • NVR Power Adapter ×1
  • HDMI Cable ×1
  • USB Mouse ×1
  • 1m Network Cable ×1
  • 18m Network Cable (except for the bundles without 18m cables) ×4

FAQs

Payment & Shipping
What are your payment options? And what currencies do you support?
You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details of Payment Policy.
How much are the customs duties?
Customs duties depend on where your items are shipped from and shipped to. See details in the Shipping Fees part of Shipping & Delivery Policy.
Where can you ship? How long will it take to receive my items?
We sell security cameras to the United States, Germany, the United Kingdom and other dozens of countries.
And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are shipped from and shipped to. See details of Shipping & Delivery Policy.
Functions
Does the NVR support the person/vehicle/animal detection of my Reolink cameras?
Yes, the NVR in RLK8-800V4 supports the cameras' smart person/vehicle/animal detection.
How can I preview or play back the videos?
Method 1: Connect the NVR to a monitor or TV for preview or playback;

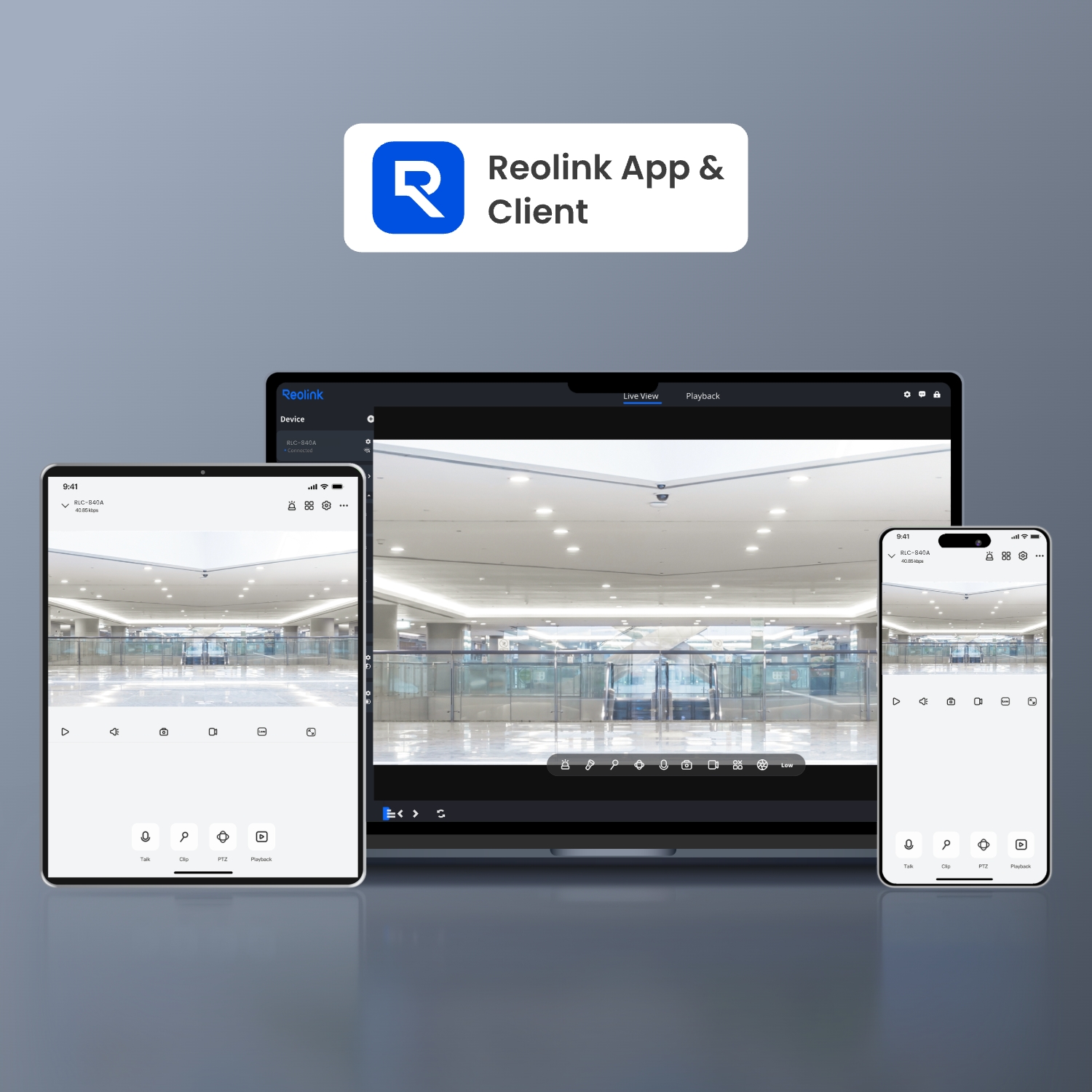

Method 2: Download FREE Reolink App or Client, add the NVR to the App or Client, and configure the settings, and then you can preview or play back the videos.
Can I connect Reolink NVR to one or more displayers?
You can connect up to two displayers to the NVR via HDMI or VGA (See the diagram below).
Connect Reolink NVR to Displayers
Cameras connected to the NVR will be shown on the displayer(s).
What is the difference if I buy cameras and the NVR separately instead of buying a whole system?
Cameras in the system cannot work alone. They have to work with the Reolink PoE NVR. If you buy standalone cameras and the NVR separately, the cameras can work alone.
Also, the network cables for cameras in the system are 18m long while those for standalone cameras are 1m long.
What ethernet cable can I use? What is the maximum distance between the camera and NVR?
Four 18m Ethernet cables are included for the four cameras in the kit. You can change them to longer ones if needed.
Reolink PoE cameras support CAT5, CAT5E, CAT6, CAT7 with 8 PIN Ethernet cables. The maximum length of the network cable they support is 330ft (100m). Please note that the data is obtained with a standard CAT5E Ethernet cable under specific test conditions and actual use may vary.
How long does the security camera systems store video footage?
The length of time to store video footage is closely related to the video code rate.
As for RLK8-800V4, the default bit rate of its cameras is 6144 kbps. Proximately, with the 4 cameras all working, this security system can store video footage for 8 days to its pre-installed 2TB HDD.
You can refer to "How Long Can Reolink NVR Record?"for more details.
If you want to keep longer video storage, you can expand the NVR's storage capacity.
Does my security system work with Google Assistant?
Sorry, the NVR system cannot work with Google Assistant.
