TrackFlex Floodlight WiFi
Overview
Specs
Accessories
Review
Comparison
FAQs

Dual Views with 6× Hybrid Zoom

Auto Tracking with 360° Coverage

3000 Lumens Unveil the Night

Local AI Video Search

Multiple Storage Options

+2

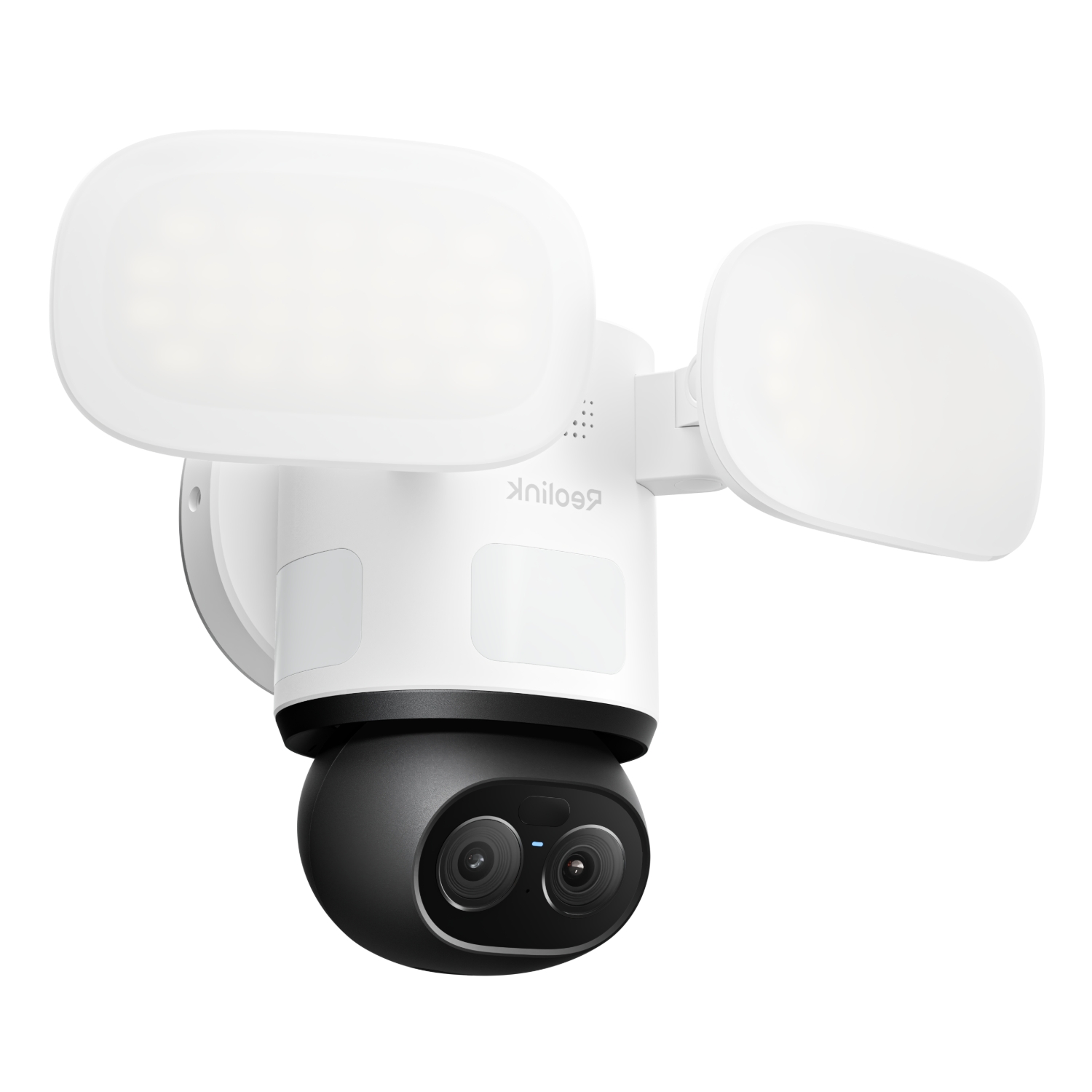

TrackFlex Floodlight WiFi

4K 360° View Dual-Lens PTZ Wired Floodlight Camera

1 Camera (White, Hardwired)

Select Your Option

Feature Highlights

4K Plus 6× Hybrid Zoom

See clearer, finer details from afar with the ultra HD and hybrid zoom.

Dual-Lens Coverage

Captures the 180° big picture with fewer blind spots.

360° Auto Tracking

Pans 355° and tilts 50° to keep the target always in the frame.

3000-Lumen Floodlights

Delivers 50% more brightness; lights up areas of up to 12m/40ft.

Local AI Video Search

Search footage stored locally, find what matters in seconds for quick response.

Dual-Band Wi-Fi 6

2.4/5 GHz offers more stable and faster data transmission. View 4K live view smoothly.

Specs

Download PDF
Image Sensor
1/3" + 1/2.8" CMOS Sensors
Resolution
3840×2160 (8MP) @20fps
1920×1080 (2MP) @20fps
Lens
f=2.8mm fixed, F=1.6; f=8 mm fixed, F=1.6
Field of View
Wide-angle lens: 104° horizontal, 60° vertical
Telephoto lens: 38° horizontal, 21° vertical
Zoom
6× hyrid zoom
Infrared Night Vision
Up to 30 meters (100ft); LED: 2pcs/850nm
(Auto-switching with IR-cut filter)
Color Night Vision
With Floodlights: 3000 Lumens/3000K–6500K
Frame Rate
Main stream: 2fps – 20fps (default: 20fps)
Sub stream: 4fps – 20fps (default: 20fps)
Code Rate
Wide-Angle:
Main: 2048-8192Kbps (default: 5120kbps)
Sub: 128-1228Kbps (default: 1024kbps)
Telephoto:
Main: 4096Kbps;
Sub:  default: 1024kbps
Audio
Two-way audio
Siren
110dB
DC Power
AC 100V~240V, 50~60Hz
DC 5V⎓2A (only for setup)
Power Port
NO
Reset Button
YES
SD Card Slot
Supports max. 512GB microSD card
Audio In/Out
Built-in microphone and speaker
PT Angle(Max.)
Pan: 355°, tilt: 50°
Pan Speed
90/8°-90°/s (adjustable)
Tilt Speed
60/8°-60°/s (adjustable)
Preset Points
Suppots 1 guard position & up to 64 preset positions
Patrol
NO
Auto Tracking
YES
Wireless Standard
IEEE 802.11 ac/ax/a/b/g/n
Operating Frequency
2.4GHz/5GHz
Wireless Security
WPA/WPA2/WPA3
Browser Supported
Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Protocols & Standards
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
User Access
Max. 20 users (1 admin & 19 user);
Max. 12 simultaneous streams (2 main & 10 sub streams)
Smart Alarm
Motion detection; Person/Vehicle/Animal detection
Record Mode
Motion-triggered recording (default); scheduled recording; 24/7 recording
Time Lapse
YES
Smart Home Compatibility
Alexa, Google Assistant
AI Video Search
YES
Operating Temperature
-10°C ~ +55°C  (14°F ~ 131°F)
Operating Humidity
10% ~ 90%
Weatherproof
IP66
Dimensions
283×184×199 mm
Weight
1.228kg
Limited Warranty
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/

Gallery

TrackFlex Floodlight WiFi-gallery-0
1Speaker
2Indicator Light
3Microphone
4Floodlight
5Bracket
6PIR Sensor
7Infrared Light
8Lens
9Lens
10Silicone Plug

TrackFlex Floodlight WiFi-gallery-1
1Type-C Port
2microSD Card Slot
3Reset Button

What’s in the Box & Setup Guide (with Video)

  • TrackFlex Floodlight WiFi ×1
  • Type-C Cable ×1
  • Mounting Bracket ×1
This camera needs hardwired installation. We also offer a Bundle with an AC Cable for your needs.

FAQs

Payment & Shipping
What are your payment options? And what currencies do you support?
You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details of Payment Policy.
Where can you ship? How long will it take to receive my items?
We sell security cameras to the United States, Germany, the United Kingdom and other dozens of countries.
And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are shipped from and shipped to. See details of Shipping & Delivery Policy.
How much are the customs duties?
Customs duties depend on where your items are shipped from and shipped to. See details in the Shipping Fees part of Shipping & Delivery Policy.
Functions
Can this camera work with Reolink NVRs and home hubs?
Yes, this camera can work with all currently available PoE and Wi-Fi NVRs, supporting 24/7 continuous recording. It is also compatible with Reolink Home Hub and Home Hub Pro.
Can this camera connect to non-Wi-Fi 6 routers?
Yes, this camera can connect to non-Wi-Fi 6 routers, but a Wi-Fi 6 router is recommended for enhanced networking.
Does this camera support two-way audio?
Yes, this camera supports two-way audio through its built-in mic and speaker. You can record videos with audio and also communicate in real-time with people at the camera’s location via the Reolink App or Client.
What kind of microSD card can I use?
This camera supports microSD cards up to 512GB, formatted in FAT32, with a Class 10 read and write speed.
Does this camera support smart home integration, such as Google Assistant?
Yes, this camera can work with Google Assistant. Learn more abouthow to add this camera to Google Assistant.
Does this camera support Time Lapse?
Yes, this camera supports Time Lapse. It can record and save time-lapse videos directly to the microSD card. Learn more about how to set up Time Lapse.
Can this camera be used outdoors/indoors?
This floodlight camera is suitable for both indoor and outdoor use. It is IP66 weatherproof certified and operates in temperatures ranging from -10°C to 55°C (14°F to 131°F), making it ideal for any environment.
What is the difference between spotlights and floodlights?
Spotlights deliver focused, bright light for smaller areas, while floodlights provide broader, more powerful illumination for larger spaces with well-distributed light.
Can I turn off the floodlights and siren?
Yes, you can manually turn off the floodlights and siren. By default, both are motion-activated and will automatically turn on when motion is detected. You can also adjust the floodlight brightness or customize the siren to suit your preferences.
Please note that with the floodlights on, you'll get clear color night vision. However, if the floodlights are off, you'll only see black-and-white images at night.
How can I power up this camera?
To power up this floodlight camera, you need to connect it to a 100-240V AC power using a UL-certified junction box. Be sure to review local laws and regulations before starting the installation. For regions outside North America, a licensed electrician must handle the installation and wiring.
